Band Saws – an economic alternative to frame and circular saws
saw frame swivels from -45° to +60° – it is not necessary to move the part
quick-action vise and depth stop are included
three speed levels allow machining of a wide variety of materials
thin saw blade for reduced material removal
long life – the saw blade is used over its entire length
exact cuts – rigid construction prevents belt track deviations
quiet, low-vibration operation
a hydraulic cylinder controls the support pressure infinitely from 0 to maximum pressure

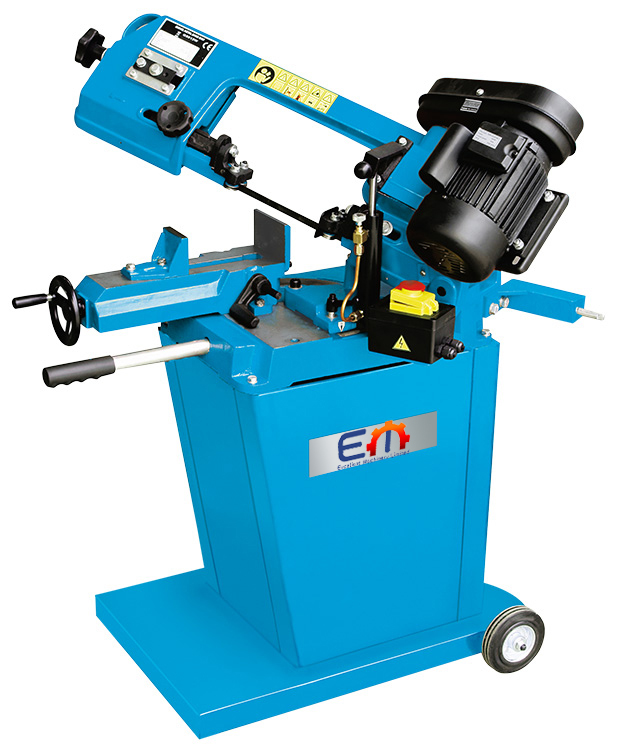

| B 125 S – Miter Band Saw | |
| cutting capacities | |
| cutting capacity 90° (round) | 125 mm |
| cutting capacity 90° (square) | 100 mm |
| cutting capacity 90° (flat) | 125×100 mm |
| cutting capacity 60° (round) | 50 mm |
| cutting capacity 60° (square) | 50 mm |
| cutting capacity 60° (flat) | 50×56 mm |
| cutting capacity 45° (round) L | 95 mm |
| cutting capacity 45° (square) L | 76 mm |
| cutting capacity 45° (flat) L | 95×76 mm |
| belt speed | 22 / 33 / 45 / 65 m/min |
| drive capacity | |
| motor rating main drive | 0,55 kW |
| supply voltage | 230 V |
| measures and weights | |
| belt dimensions | 1640x13x0,65 mm |
| overall dimensions | 1000x550x1100 mm |
| weight | 100 kg |
,
