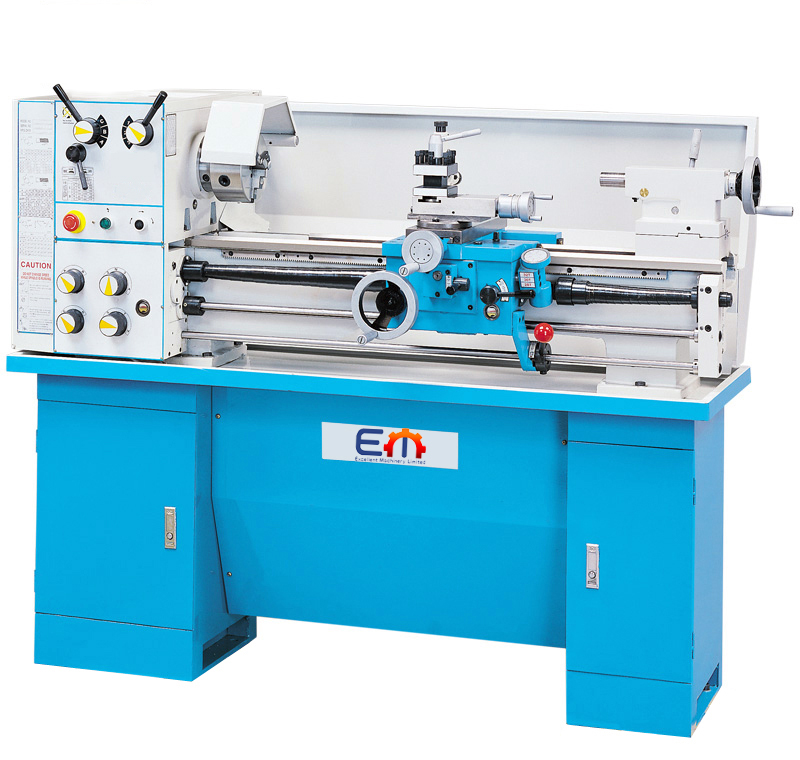

Basic Plus - Mechanics Lathe


Low-Cost-Version leadscrew and feed shaft lathe

cast-iron bed, heavily ribbed
induction-hardened and precision-ground box ways
headstock with Camlock D1-4″ mount, bore diam. 38 mm, run in 2 adjustable tapered roller bearings
tailstock can be moved ± 10 mm for taper turning
guides are adjustable via tapered gibs

Basic Plus – Mechanics Lathe
working area
workpiece length (max.)810 mm
turning diameter over bed (max.)300 mm
turning diameter over support (max.)178 mm
turning diameter over gap bridge (max.)430 mm
travel X-axis175 mm
travel Z1-axis95 mm
bed width180 mm
swing range of top slide± 60 °
spindle speed(9) 60 – 1550 rpm
spindle bore38 mm
spindle mountCamlock D1-4
spindle taperMT 4
feed X-axis0,014 – 0,38 mm/R
feed Z-axis0,052 – 1,392 mm/R
tapping, metric(26) 0,4-7 mm
tapping, whitworth(34) 4-56 GPZ
tailstock quill diameter32 mm
tailstock taperMT 3
tailstock quill stroke100 mm
tailstock traverse adjustment± 10 mm / ± 0,5″
drive capacity
motor rating main drive1,1 kW
supply voltage400 V
measures and weights
overall dimensions1600x750x1270 mm
weight520 kg
