Column Drill Press with Milling Function

Column Drill Press with Milling Function

Column Drill Press with Milling Function

Universal Skill Package for the Shop Floor – Drilling, Thread cutting, and Milling

Drilling and Milling – a true added value for a low price
compound sliding table with scale and adjustable stops for coordinate drilling and light milling work
quiet operation with oil-bath lubricated gears for long tool life and durability
the milling machine’s high-quality spindle bearing can withstand higher loads for the long term
manual drill feed can be switched to high-precision feed via a hand-wheel
Controllable automatic feed with 3 gear steps
adjustable height of gear head and table
table guides are adjustable with high precision via taper gibs
gear head swivels to both sides
cutter mounts are secured by an M16 drawbar
tapping feature
integrated coolant system

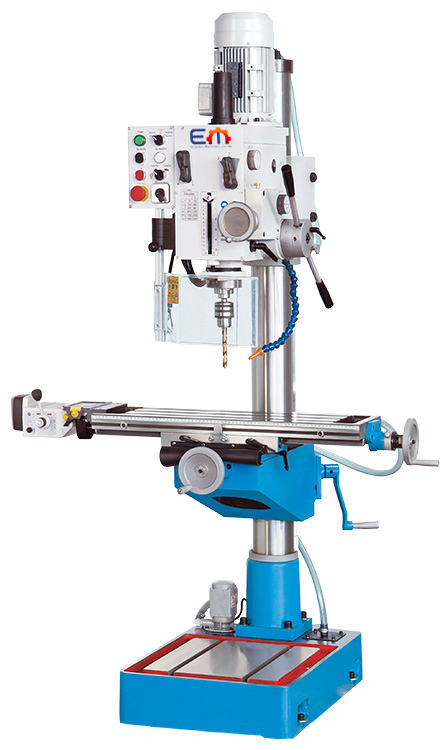

SBF 40 TV 1000 – Column Drill Press with Milling Function
drilling capacity40 mm
tapping capacity, steel(ST 37) M16
working area
travel X-axis500 mm
travel Y-axis190 mm
travel Z1-axis580 mm
travel Z2-axis580 mm
table set up area730×210 mm
table load capacity100 kg
T-slot table (qty x width x spacing)3x14x63 mm
T-slot foot (qty x width x spacing)2x14x200 mm
quill stroke120 mm
spindle nose-to-table surface distance600 mm
spindle nose-to-foot distance1180 mm
throat278 mm
column diameter115 mm
head swivel range± 45 °
work feed0 – 420 mm/min
rapid feed600 mm/min
speed range(12) 75 – 3200 rpm
spindle mountMK 4 / MT 4
drive capacity
motor rating main drive1,5 kW
main drive, continuous load1,1 kW
motor rating coolant pump0,04 kW
measures and weights
overall dimensions830x760x1850 mm
weight390 kg
