including pneumatic clutch, two-hand control and light barrier for operations with open tools
heavy-duty steel weldment
high number of strokes per minute ensures cost-effective operation
brass/steel ram guide
foot switch
quiet operation
central lubrication

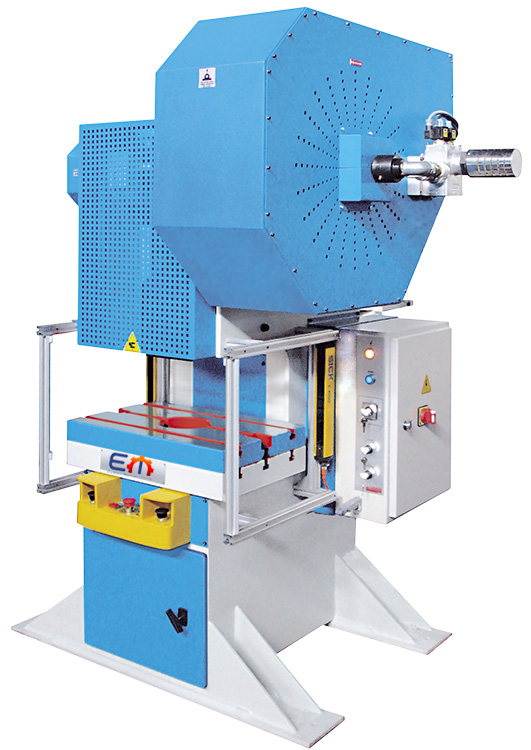

| Eccentric Press | KEX 15 P | KEX 20 P | KEX 30 |
| working area | |||
| pressure force | 15 t | 20 t | 30 t |
| base plate-to-ram distance | 226 mm | 261 mm | 290 mm |
| table-ram distance | 172 mm | 196 mm | 215 mm |
| stroke | 40 mm | 50 mm | 60 mm |
| stroke adjustment | 10 – 40 mm | 10 – 50 mm | 10 – 60 mm |
| table set up area | 320×490 mm | 360×550 mm | 400×600 mm |
| throat | 200 mm | 200 mm | 200 mm |
| ram mount diameter | 30 mm | 35 mm | 40 mm |
| Hubzahl | 200 rpm | 160 rpm | 140 rpm |
| table bore diameter | 130 mm | 140 mm | 150 mm |
| flywheel diameter | 585 mm | 680 mm | 710 mm |
| drive capacity | |||
| motor rating main drive | 1,5 kW | 2,2 kW | 3 kW |
| measures and weights | |||
| overall dimensions | 964x724x1726 mm | 1042x794x1856 mm | 790x1025x1965 mm |
| weight | 740 kg | 1150 kg | 1600 kg |
,
,
