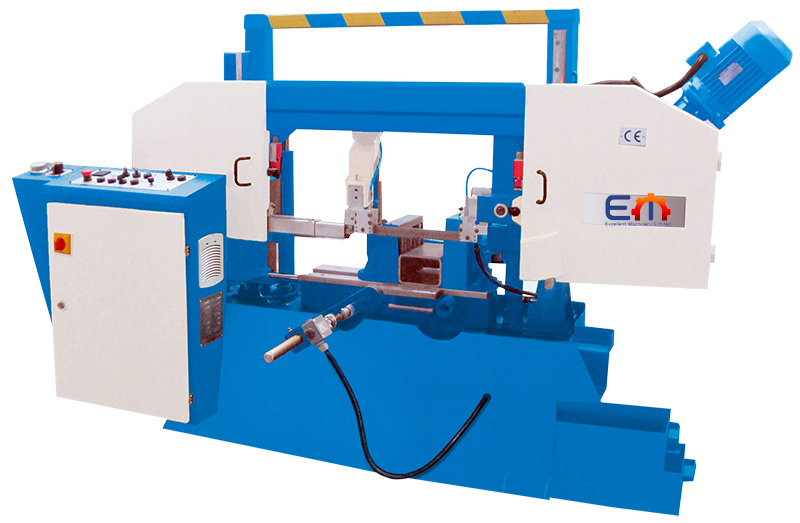

Fully Automated Band Saw

Fully Automated Band Saw

Fully Automated Band Saw



 Fully Automated Band SawABS 325 LABS 380 LABS 460 L ABS 560 L
cutting capacities
cutting capacity 90° (flat)350×325 mm430×380 mm470×460 mm570×560 mm
cutting capacity 90° (round)325 mm380 mm460 mm560 mm
cutting capacity 90° (square)325 mm380 mm460 mm560 mm
stop length500 mm500 mm500 mm500 mm
cutting speed20 – 100 m/min20 – 100 m/min20 – 100 m/min20 – 100 m/min
drive capacity
motor rating main drive2,2 kW3 kW4 kW4 kW
supply voltage400 V400 V400 V400 V
motor rating hydraulic pump0,55 kW0,55 kW0,55 kW1,1 kW
motor rating feed0,25 kW0,25 kW0,25 kW0,55 kW
measures and weights
belt dimensions4160x34x1,1 mm4800x34x1,1 mm5200x41x1,3 mm6000x41x1,3 mm
overall dimensions2450x900x1500 mm2900x950x1660 mm3100x1000x1800 mm3500x1050x2050 mm
weight880 kg1250 kg1500 kg2010 kg

,
