Perfect for Workshop and Training Applications
saw frame travels across solid dual-column guides
rigid, adjustable saw blade guides prevent lateral escape of the saw blade and ensure maximum angular accuracy
ideally positioned control panel within comfortable reach on top of the saw frame
at the end of each sawing cycle, the saw blade frame will automatically return to the home position
throttle valve allows infinitely variable saw frame feed
two cutting speeds for a wide spectrum of materials and workpiece diameters
manually adjustable workpiece clamping and linear stop
coolant system

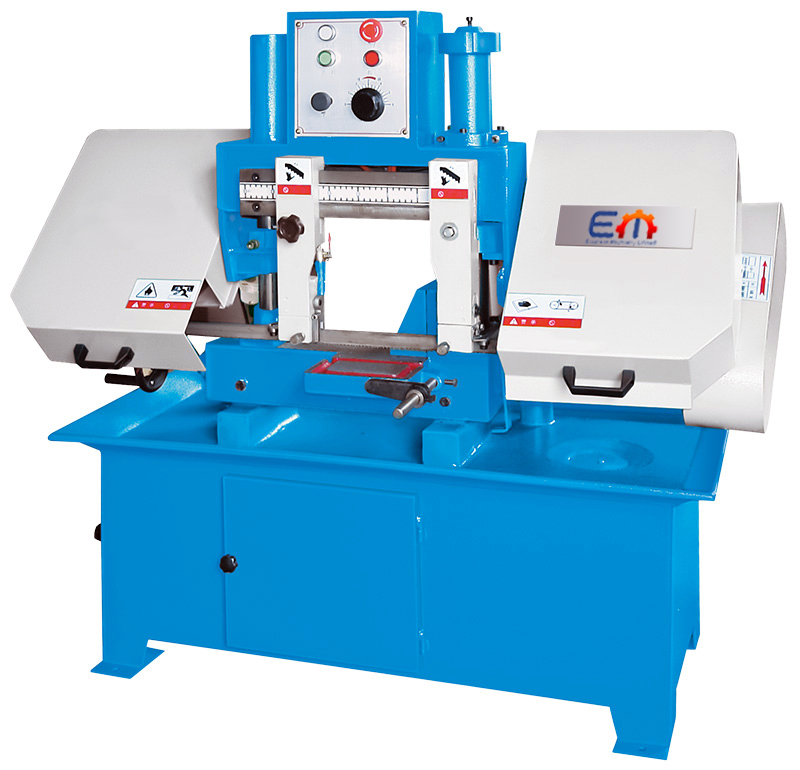

| HB 200 Basic – Semi-Automatic Horizontal Band Saw | |
| cutting capacities | |
| cutting capacity 90° (flat) | 200×200 mm |
| cutting capacity 90° (round) | 200 mm |
| cutting capacity 90° (square) | 200 mm |
| cutting speed | 28, 45 m/min |
| drive capacity | |
| motor rating main drive | 1,8 kW |
| main drive, continuous load | 1,3 kW |
| motor rating hydraulic pump | 0,55 kW |
| motor rating coolant pump | 0,04 kW |
| measures and weights | |
| belt dimensions | 2650x27x0,9 mm |
| overall dimensions | 1300x800x1100 mm |
| weight | 260 kg |
,
