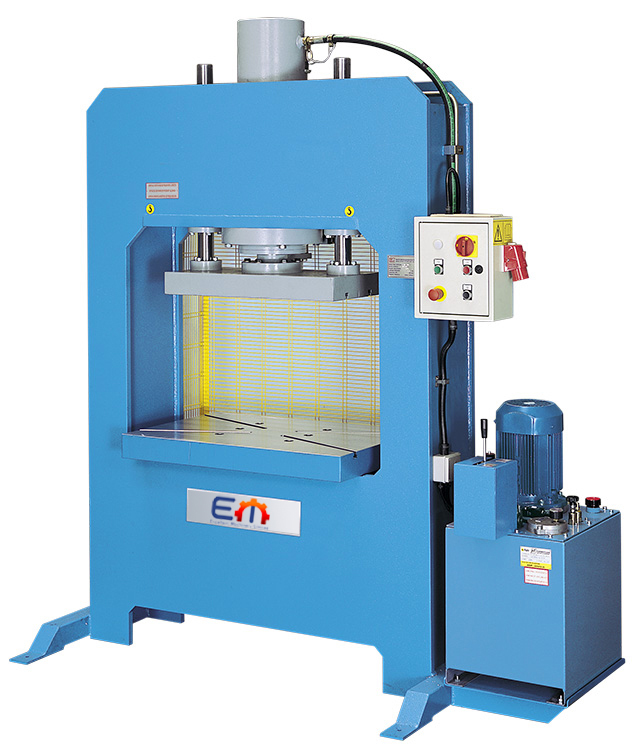

Hydraulic Press for Bending, Blanking and Dies
strong hydraulic cylinder and two circular guides ensure uniform and precise feeding during press operation
also suitable as try-out press
ram plate and large work table with T-slots for tool clamping
firmly bolted work table
adjustable end stop
| Hydraulic Press | KP 70 | KP 100 | KP 150 | KP 200 |
| working area | ||||
| pressure force | 70 t | 100 t | 150 t | 200 t |
| stroke | 500 mm | 500 mm | 500 mm | 500 mm |
| stroke speed | 2 mm/s | 2 mm/s | 2 mm/s | 2 mm/s |
| rapid feed | 1080 mm/min | 1320 mm/min | 1200 mm/min | 1200 mm/min |
| drive capacity | ||||
| motor rating hydraulic pump | 1,5 kW | 4 kW | 3,2 kW | 7,5 kW |
| measures and weights | ||||
| weight | 1100 kg | 1600 kg | 3000 kg | 4300 kg |
,
