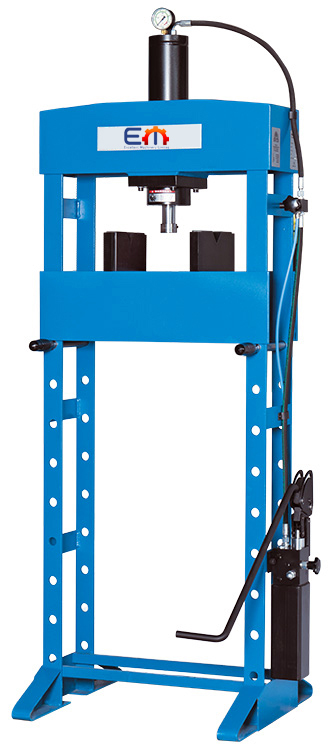

Ideal for craft shops, schools and training facilities
For any repair and installation work, e.g.:
removal and installation of press-fit bearings, bolts and bushings
straightening beams, shafts, axles and sections
pressing and crimping
load tests and weld sample testing
straightening of workpieces
material testing
rigid machine frame freaturing a carefully machined weldment structure
hydraulic pump can be operated by hand or foot control
2-step hydraulics – with change-over switch for changing between quick-stroke and work stroke
the support table features a rigid design, but is easy to handle with adjustable height
standard multi-function die featuring a large belt width – for straightening flat materials and shafts – for machining workpieces in axial direction
table lifting system
| Hydraulic Workshop Presses | KNWP 15 M | KNWP 30 M | KNWP 50 M |
| working area | |||
| pressure force | 15 t | 30 t | 50 t |
| operating pressure (max.) | 382,2 bar | 374,6 bar | 399,5 bar |
| piston travel per quick stroke | 7,84 mm | 3,84 mm | 2,46 mm |
| piston travel per work stroke | 0,96 mm | 0,47 mm | 0,3 mm |
| total piston stroke | 160 mm | 160 mm | 160 mm |
| flow rate quick stroke | 31,5 l/min | 31,5 l/min | 31,5 l/min |
| flow rate work stroke | 3,8 l/min | 3,8 l/min | 3,8 l/min |
| measures and weights | |||
| oil tank capacity | 1,65 l | 1,65 l | 1,65 l |
| hydraulic tank volume | 1,65 l | 1,65 l | 2,5 l |
| weight | 117 kg | 150 kg | 250 kg |
,
