Feature:

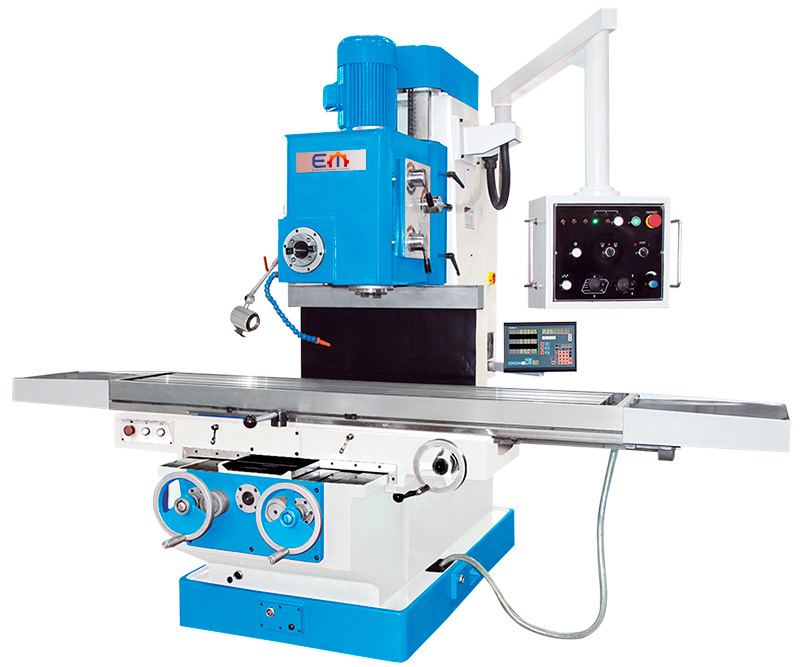

Bed-type Milling Machine for concurrent vertical and horizontal milling
machine bed, table, and large rigid column in box-column design are made of high-quality cast-iron with tension-free annealing
extra wide box ways on X and Y ensure maximum rigidity and precision at high table loads
the cutter head is designed for heavy-duty machining and features 2 headstocks for added application flexibility
all gears and shafts are hardened and ground
infinitely variable feed on all axes
wide range of spindle speeds across 18 steps from 42 to 1290 rpm
| KBH 2000 – Bed-Type Milling Machine | |
| working area | |
| travel X-axis | 1500 mm |
| travel Y-axis | 650 mm |
| travel Z-axis | 650 mm |
| table set up area | 2000×400 mm |
| number of T-slots | 3 Pieces |
| T-slots, width | 18 mm |
| T-slots, spacing | 100 mm |
| spindle axis-to-table surface distance | 0 – 600 mm |
| feed | |
| rapid feed X-axis | 3500 mm/min |
| rapid feed Y-axis | 3500 mm/min |
| rapid feed Z-axis | 3500 mm/min |
| feed speed X-axis | 20 – 2000 mm/min |
| feed speed Y-axis | 20 – 2000 mm/min |
| feed speed Z-axis | 20 – 2000 mm/min |
| vertical milling head | |
| spindle speed (vertical) | (18) 42 – 1290 rpm |
| spindle mount (vertical) | SK 50 |
| throat (vertical) | 450 mm |
| horizontal milling | |
| spindle speed (horizontal) | (18) 42 – 1260 rpm |
| spindle mount (horizontal) | SK 50 |
| throat (horizontal) | 602,5 mm |
| drive capacity | |
| motor rating main drive | 7,5 kW |
| motor rating feed | 2,8 kW |
| motor rating coolant pump | 0,09 kW |
| measures and weights | |
| overall dimensions | 3000x2420x2340 mm |
| weight | 4500 kg |
,
