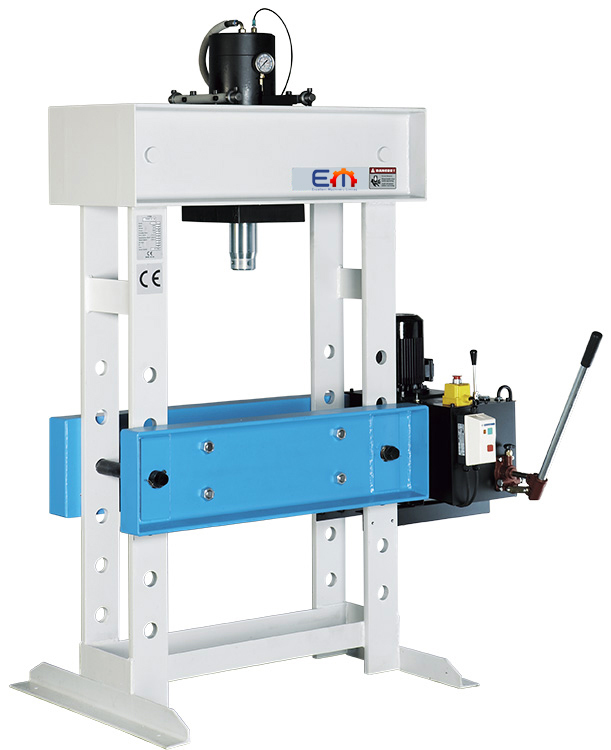

Hydraulic Workshop Presses with double-acting cylinder, easy to use
60 tons force
ideal for repair and assembly work
truing of axles, supports, shafts and much more
for removal and pressfitting bearings and bushings
with motorized hydraulic drive
automatic piston return
2-step hydraulic unit
supply voltage 3×400 V / 50 Hz
horizontal piston adjustment
| KNWP 60 HM – Hydraulic Workshop Presses | |
| working area | |
| pressure force | 60 t |
| operating pressure (max.) | 235 bar |
| stroke | 400 mm |
| stroke speed | 2,2 – 9,2 mm/s |
| return speed | 12,7 mm/s |
| flow rate | 3,3 – 13,5 l/min |
| drive capacity | |
| motor rating hydraulic pump | 1,5 kW |
| measures and weights | |
| hydraulic tank volume | 20 l |
| weight | 685 kg |
,
