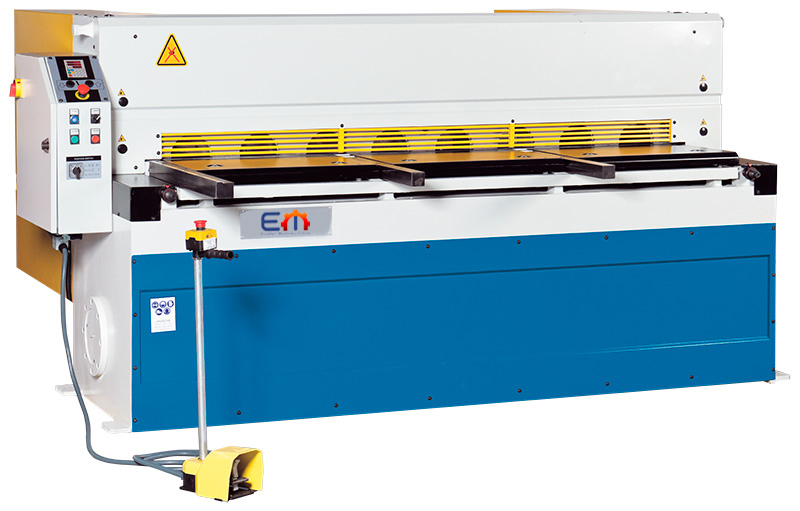

| Motorized Swing-Beam Shears | KMT 1055 NC | KMT 1554 NC | KMT 1555 NC | KMT 2054 NC | KMT 2554 NC | KMT 3104 NC |
| working area | ||||||
| plate thickness (max.) | 5 mm | 4 mm | 5 mm | 4 mm | 4 mm | 4 mm |
| working length | 1050 mm | 1550 mm | 1550 mm | 2050 mm | 2550 mm | 3100 mm |
| rear stop | 750 mm | 750 mm | 750 mm | 750 mm | 750 mm | 750 mm |
| cutting angle | 2° 7’ | 2° 25’ | 2° 7’ | 41 H/min | 2° 25’ | 2° 25’ |
| strokes per minute (automatic mode) | 34 H/min | 41 H/min | 34 H/min | 2° 25’ | 41 H/min | 41 H/min |
| work table height | 850 mm | 850 mm | 850 mm | 850 mm | 850 mm | 850 mm |
| drive capacity | ||||||
| motor rating main drive | 7,5 kW | 7,5 kW | 7,5 kW | 7,5 kW | 7,5 kW | 7,5 kW |
| measures and weights | ||||||
| overall dimensions | 1950x2200x1400 mm | 1950x2200x1400 mm | 1950x2250x1400 mm | 2700x2200x1400 mm | 3200x2200x1400 mm | 3800x2200x1400 mm |
| weight | 2400 kg | 2540 kg | 2800 kg | 2900 kg | 3400 kg | 3995 kg |
,
