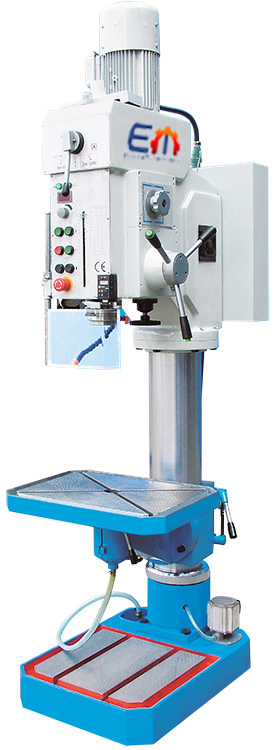

SSB 50 F Super – Column Drill Press

SSB 50 F Super – Column Drill Press

SSB 50 F Super - Column Drill Press

Production Drill Press with infinitely variable speed and tapping feature

Ideal for single part and series productions, for drilling, countersinking, reaming and tapping
very rigid construction with thick-walled column and large throat
infinitely variable speed adjustment with back gearing and digital speed display
4 automatic drill feeds with electromagnetic clutch control and automatic shut-off when reaching the limit stop
motorized table height adjustments
digital boring depth display
large table with circumferential coolant groove, height and tilt adjustment
tapping unit is standard

SSB 50 F Super – Column Drill Press
drilling capacity50 mm
tapping capacity, steelM 30
working area
table set up area580×460 mm
quill stroke200 mm
manual table travel530 mm
powered table travel410 mm
table swivel range (max.)± 45°
column diameter180 mm
spindle nose-to-table distance (max.)590 mm
spindle nose-to-foot distance1175 mm
throat360 mm
speed range50 – 2200 rpm
spindle mountMK 4
quill feeds0,1;0,2;0,3;0,4 (4) mm/R
drive capacity
motor rating main drive2,2 kW
supply voltage400 V
measures and weights
overall dimensions1150x680x2360 mm
weight650 kg
