Feature:
Turning – Milling – Drilling

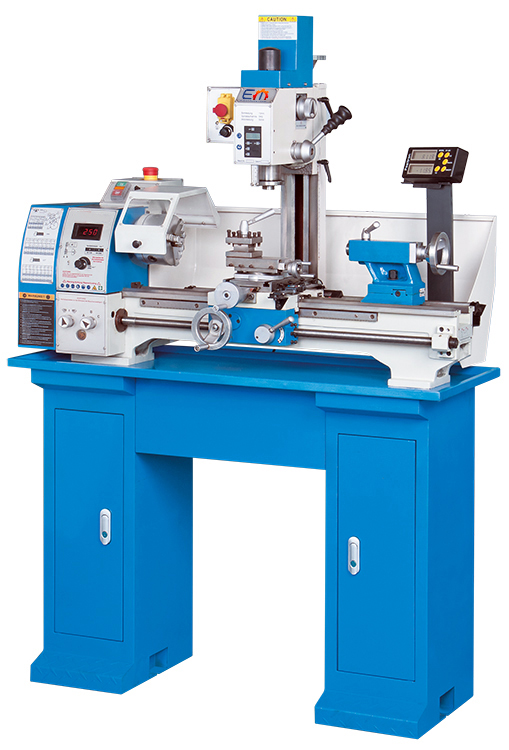

Compact and extensively equipped universal lathe
The ideal machine for demanding pattern makers, training shops, and precision mechanics
incl. 2-axis position indicator, fully assembled
center width 550 mm
infinitely adjustable speed up to 2500 rpm
stepped feed gears
very practical machine with leadscrew for turning / milling / drilling of parts
infinitely variable speed adjustment, with digital speed indicator for 2 ranges – quiet belt drive for turning, 2-step gear for milling
easy tooling change-over from turning to drilling / milling
rigid machine bed with hardened and ground guideways, taper gibs for zero-backlash adjustments
precision bearings ensure high spindle concentricity
tailstock adjustable for taper turning
milling unit with swivel head
cross slide with T-slots for parts clamping
| Universa 550 V – Lathe and Milling Machine | |
| working area | |
| workpiece length (max.) | 550 mm |
| turning diameter over bed (max.) | 250 mm |
| bed width | 135 mm |
| turning diameter over support (max.) | 150 mm |
| travel X-axis | 70 mm |
| travel Z1-axis | 115 mm |
| headstock | |
| speed range, low | 50 – 1250 rpm |
| speed range, high | (2) 100 – 2500 rpm |
| Spindelkonus | MT 4 |
| spindle bore | 26 mm |
| feed | |
| feed Z-axis | 0,07 – 0,2 mm/R |
| tapping | |
| tapping, metric | 0,4-3,5 mm |
| tapping, inch | 8 – 56 TPI |
| tailstock | |
| tailstock quill diameter | 35 mm |
| tailstock taper | MT 2 |
| tailstock quill stroke | 70 mm |
| tailstock traverse adjustment | 6 mm / 0,24″ |
| drive capacity | |
| motor rating main drive | 0,75 kW |
| supply voltage | 230 V |
| milling | |
| drilling capacity | 16 mm |
| spindle nose-to-table surface distance | 150 mm |
| throat | 175 mm |
| head swivel range | ± 90° |
| speed range milling head, high | 100 – 2250 rpm |
| speed range milling head, low | 50 – 1125 rpm |
| motor rating vertical spindle | 0,5 kW |
| spindle mount | MK 2 / MT 2 |
| Schaftfräsen | 16 mm |
| measures and weights | |
| overall dimensions | 1200x530x1550 mm |
| weight | 240 kg |
,
