Feature:

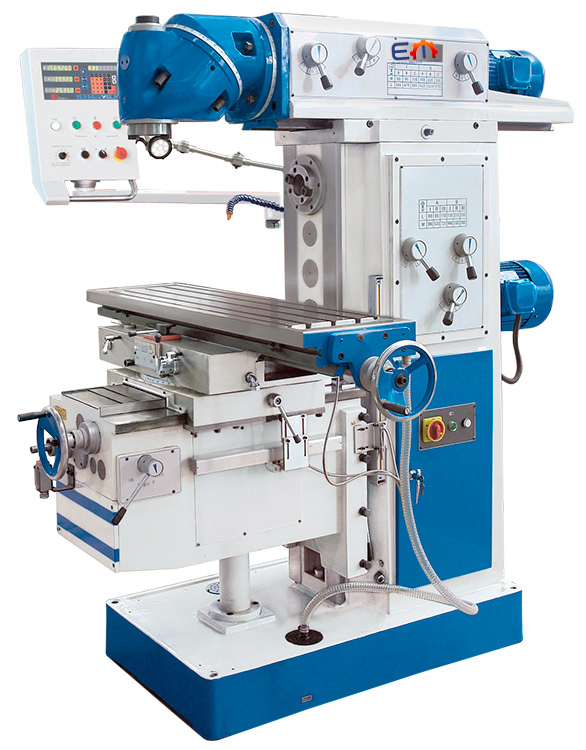

Rigid Knee-and-Column Milling Machine with servo drive feed and universal swivel head

extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing
Precision-ground guideways with hardened surfaces for long-term accuracy and wear-resistance
Large work area of 1325 x 360 mm and up to 500 kg table load capacity
Quiet, precision-made headstock gears with hardened and ground gears
Universal cutter head swivels on 2 levels – quick change-over from horizontal to vertical machining
By combining both swivel levels, almost any spatial angle can be set
Powerful axis servo-motors allow infinite adjustment of feeds on all 3 axes
Telescoping covers on the Y axis protect the feed spindle
Control panel swings out to either side and features an integrated position indicator
5.5 kW main drive guarantees high torque
Coolant system and chip tray are included

UWF 5 – Universal Milling Machine
working area
travel X-axis750 mm
travel Y-axis280 mm
travel Z-axis390 mm
table dimensions1325×360 mm
table load capacity500 kg
number of T-slots3 Pieces
T-slots, width18 mm
T-slots, spacing80 mm
feed
rapid feed X-axis1200 mm/min
rapid feed Y-axis800 mm/min
rapid feed Z-axis600 mm/min
feed speed X-axis30 – 750 mm/min
feed speed Y-axis20 – 500 mm/min
feed speed Z-axis15 – 375 mm/min
Milling Head
speed range(12) 60 – 1750 rpm
spindle mountISO 50
swivel angle360 °
upper beam travel550 mm
Spindle center-to-table distance200 – 590 mm
horizontal spindle
spindle speed (horizontal)(12) 60 – 1800 rpm
spindle mount (horizontal)ISO 50
throat380 – 930 mm
drive capacity
motor rating horizontal spindle5,5 kW
motor rating vertical spindle4 kW
motor rating X axis feed1,5 kW
motor rating Y axis feed1,5 kW
motor rating Z axis feed1,5 kW
motor rating coolant pump0,09 kW
measures and weights
overall dimensions1800x2100x2000 mm
weight2885 kg

,
