for press-fitting and pulling bearings
aligning, bending
broaching
base is not included

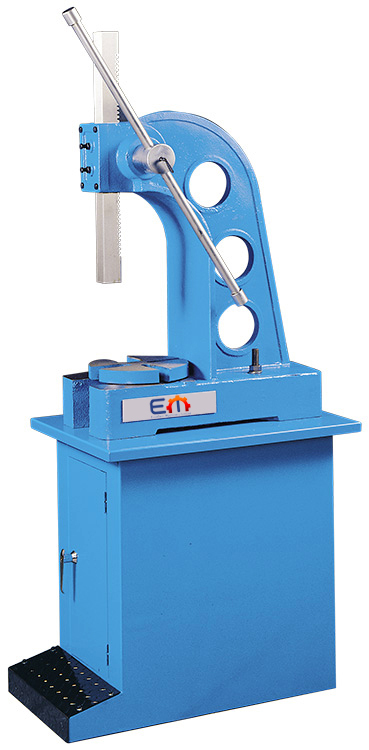

| Arbor Press | 1 T | 2 T | 3 T | 5 T |
| working area | ||||
| press force | 5 kN | 10 kN | 15 kN | 20 kN |
| throat | 100 mm | 145 mm | 170 mm | 220 mm |
| workpiece thickness (max.) | 147 mm | 215 mm | 317 mm | 400 mm |
| ram dimensions | 25x25x266 mm | 31x31x336 mm | 35x35x450 mm | 50x50x645 mm |
| measures and weights | ||||
| overall dimensions | 240x130x320 mm | 400x170x420 mm | 450x200x555 mm | 643x370x815 mm |
| weight | 17 kg | 45 kg | 69 kg | 163 kg |
,
,
