Feature:
Versatile Use in Workshop Applications, for training and small-parts productions
With a universal drill table
swivels 45°
rotates 360° around column
adjustable depth stop
quiet belt drive operation
FWD/REV toggle switch
headstock runs in precision-bearings
12 speeds allow selection of optimum speeds at the workpiece

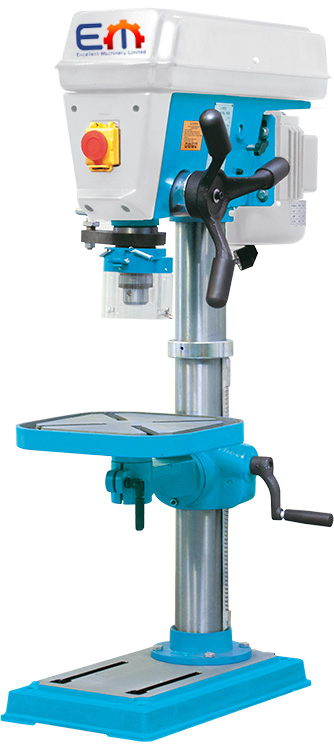

| KB 20 – Bench drill press | |
| drilling capacity | 20 mm |
| working area | |
| table set up area | 290×290 mm |
| spindle nose-to-table distance (max.) | 140 – 550 mm |
| spindle nose-to-foot distance | 640 mm |
| throat | 178 mm |
| column diameter | 80 mm |
| headstock | |
| speed range | (12) 120 – 2580 rpm |
| spindle mount | MK 2 / MT 2 |
| quill stroke | 80 mm |
| drive capacity | |
| motor rating main drive | 0,55 kW |
| supply voltage | 380 V |
| measures and weights | |
| overall dimensions | 840x570x290 mm |
| weight | 85 kg |
,
,
,
