Feature:
Superior Rigidity for Demanding Drilling, Reaming and Thread-Cutting Tasks
box-column design provides high load capacity, and is torsion-proof and rigid
table and drill head can be moved individually for an optimum machining height
9-step feed and speed gears, with oil-bath lubrication
high torque across the entire speed range
thread-cutting unit automatically reverses upon reaching the preset depth

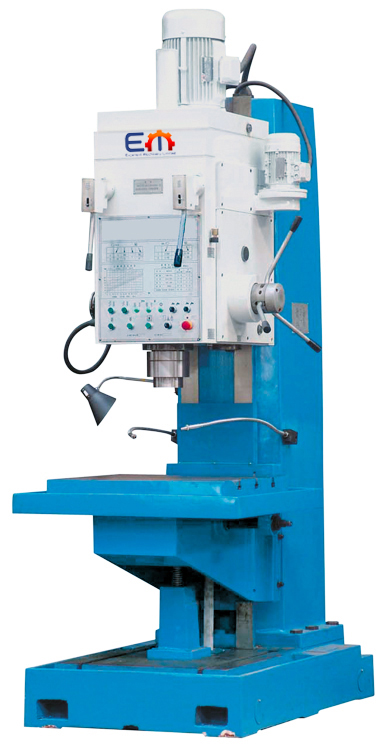

| KSB 100 – Box-Column Drill Press | |
| drilling capacity | 100 mm |
| working area | |
| table set up area | 760×650 mm |
| T-slots, width | 22 mm |
| number of T-slots | 3 Pieces |
| quill stroke | 310 mm |
| table stroke | 300 mm |
| Vorschub Z-Achse | 0,1 – 0,71 mm/R |
| feed force, axial (max.) | 45 kN |
| spindle nose-to-table distance (max.) | 850 mm |
| throat | 480 mm |
| vertical head travel | 300 mm |
| headstock | |
| spindle speed | (6) 26 – 320 rpm |
| spindle mount | MK 6 |
| headstock torque | 1150 Nm |
| drive capacity | |
| motor rating main drive | 7,5 kW |
| motor rating coolant pump | 0,075 kW |
| measures and weights | |
| Fördermenge | 25 l/min |
| overall dimensions | 1465x970x3170 mm |
| weight | 3500 kg |
,
,
