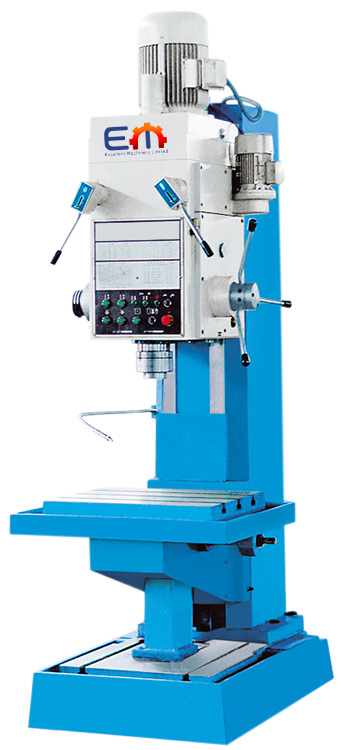

KSB 63B - Box-Column Drill Press

Feature:

Superior Rigidity for Demanding Drilling, Reaming and Thread-Cutting Tasks

box-column design provides high load capacity, and is torsion-proof and rigid
table and drill head can be moved individually for an optimum machining height
9-step feed and speed gears, with oil-bath lubrication
high torque across the entire speed range
thread-cutting unit automatically reverses upon reaching the preset depth

KSB 63B – Box-Column Drill Press
drilling capacity63 mm
working area
table set up area650×550 mm
T-slots, width22 mm
number of T-slots3 Pieces
quill stroke250 mm
table stroke300 mm
Vorschub Z-Achse(6) 0,1 – 0,78 mm/R
feed force, axial (max.)30 kN
spindle nose-to-table distance (max.)860 mm
throat375 mm
vertical head travel260 mm
headstock
spindle speed(9) 40 – 570 rpm
headstock torque800 Nm
spindle taperMT 5
drive capacity
motor rating main drive5,5 kW
motor rating coolant pump0,09 kW
measures and weights
Fördermenge25 l/min
overall dimensions965x1452x2787 mm
weight2500 kg

,
