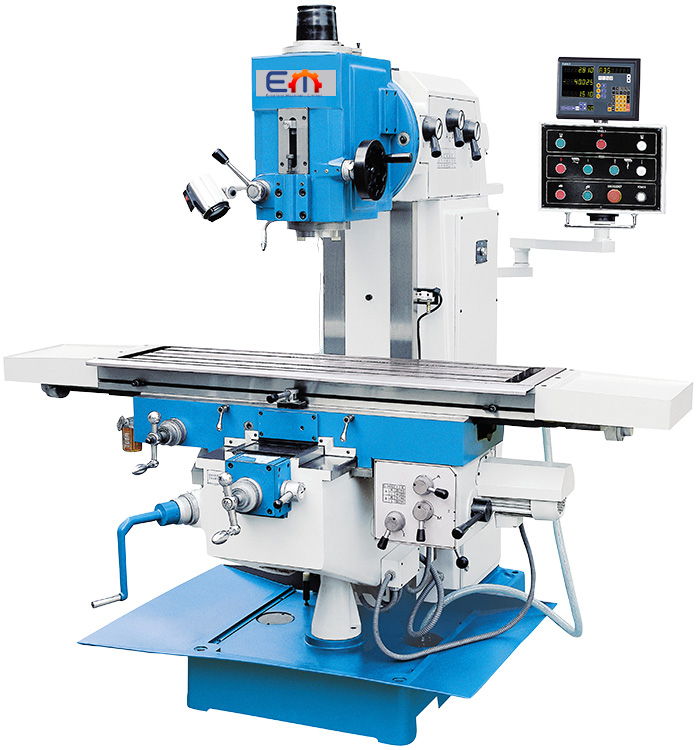

VFM 4 – Vertical Milling Machine

VFM 4 – Vertical Milling Machine

VFM 4 - Vertical Milling Machine


Knee-and-Column Milling Machine – ideal for single-part production, rework and repairs

massive machine frame with very rigid knee slide
X- and Y-axis with automatic feed and rapid feed
Z axis with motorized rapid feed
work table and guides are hardened and ground
extremely rigid cutter head, swivels +/-35°
manual quill feed for boring and micro-feed

VFM 4 – Vertical Milling Machine
working area
travel X-axis1000 mm
travel Y-axis282 mm
travel Z-axis400 mm
table set up area1320×320 mm
number of T-slots5 Pieces
T-slots, width14 mm
T-slots, spacing63 mm
throat360 mm
head swivel range± 35°
workpiece weight (max.)300 kg
rapid feed X-axis1200 mm/min
rapid feed Y-axis1200 mm/min
rapid feed Z-axis600 mm/min
feed speed X-axis(8) 20 – 360 mm/min
feed speed Y-axis(8) 20 – 360 mm/min
vertical milling head
speed range58 – 1710 rpm
spindle mount (vertical)ISO 50
quill stroke70 mm
vertical spindle-to-table surface distance45 – 445 mm
drive capacity
motor rating main drive4 kW
motor rating feed0,55 kW
motor rating coolant pump0,09 kW
measures and weights
overall dimensions2220x1820x1880 mm
weight2300 kg
