Feature:

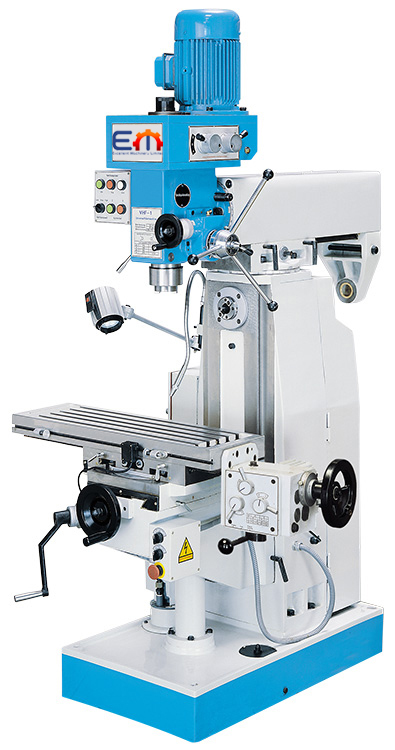

Flexible Entry-Level Machine – a very compact horizontal/vertical Drill Press/ Milling Machine Combination
compact, easy to handle universal milling machine with rigid frame made of vibration-dampening cast iron
vertical cutter head with robust gears for smooth shifting
quill moves via capstan handle or manual precision feed
horizontal spindle speed adjustable via easy accessible belt drive
table swivels horizontally
table feed in X-direction through toothed gears ensures positive power transmission without torque losses
table feed in X direction with gear drive for positive power transmission without loss of torque
adjustable stops on all axes
wide, adjustable dovetail guides with clamping fixtures on all axes
| VHF 1 – Universal Milling Machine | |
| cutting capacity | |
| drilling capacity | 30 mm |
| milling diameter in steel (max.) | 25 mm |
| tapping capacity, steel | M 16 |
| counter-boring capacity | 100 mm |
| working area | |
| travel X-axis | 585 mm |
| travel Y-axis | 185 mm |
| travel Z-axis | 280 mm |
| table set up area | 1000×240 mm |
| vertical milling head | |
| spindle speed (vertical) | (8) 115 – 1750 rpm |
| spindle mount (vertical) | SK 40 |
| quill stroke | 120 mm |
| throat | 200 – 700 mm |
| spindle nose-to-table surface distance | 65 – 385 mm |
| horizontal milling head | |
| spindle speed (horizontal) | (9) 60 – 1350 rpm |
| horizontal spindle-to-table surface distance | 0 – 300 mm |
| drive capacity | |
| motor rating horizontal spindle | 2,2 kW |
| motor rating vertical spindle | 1,5 kW |
| measures and weights | |
| overall dimensions | 1290x1220x2100 mm |
| weight | 850 kg |
,
,
