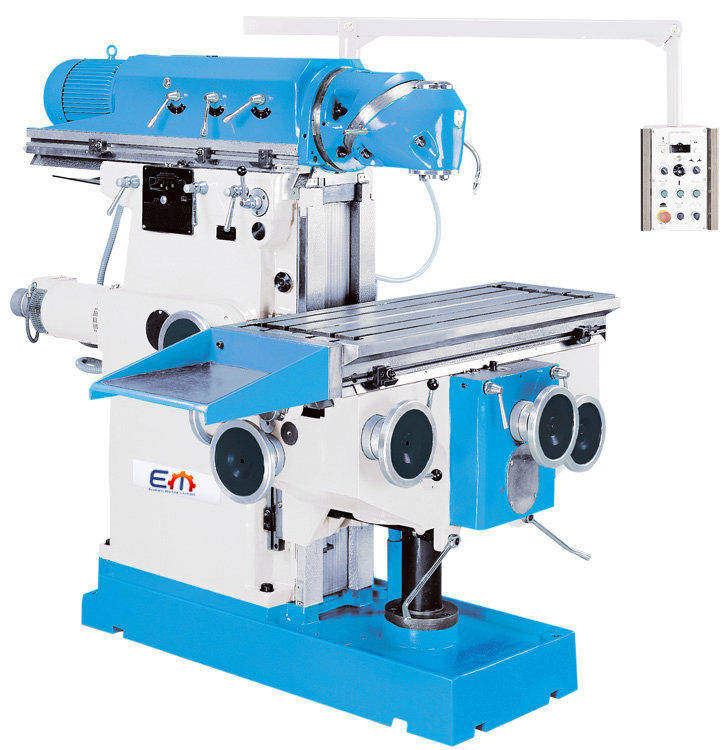

UWF 10 - Universal Milling Machine

Servo drive X, Y, Z, and large workspace (X 900 mm and Y 650 mm)

total price including 3-axis position indicator assembled
extra large work table and large travel ranges on all axes
sturdy and torsionally rigid construction
universal swivel head – cutter can be moved to any spatial angle
infinitely variable feed speed and rapid feed with servo motor and axis control on all 3 axes
preloaded ball screw – zero-backlash – preloaded for easy and precise feeds
simultaneous axis movement
Turcite-B coated guides
dovetail guideways on X-axis
square guides in the Z axis
hardened and ground gears, nitrated
swiveling control panel, fully equipped with all operating elements
automatic lubricant supply
spindle brakes
equipment according to CE

UWF 10 – Universal Milling Machine
working area
travel X-axis900 mm
travel Y-axis650 mm
travel Z-axis450 mm
table set up area1235×460 mm
table load capacity (max.)800 kg
number of T-slots5 Pieces
T-slots, width18 mm
T-slots, spacing80 mm
rapid feed X-axis2540 mm/min
rapid feed Y-axis2540 mm/min
rapid feed Z-axis1700 mm/min
feed speed X-axis10 – 1000 mm/min
feed speed Y-axis10 – 1000 mm/min
feed speed Z-axis6 – 640 mm/min
vertical milling head
spindle speed (vertical)(27) 30 – 2050 rpm
spindle mount (vertical)SK 40
throat63 – 713 mm
spindle nose-to-table surface distance50 – 500 mm
milling head swivel range360 °
drive capacity
motor rating main drive5,5 kW
axes drive for each axisDC Servo
measures and weights
overall dimensions1940x2220x2115 mm
weight4300 kg
