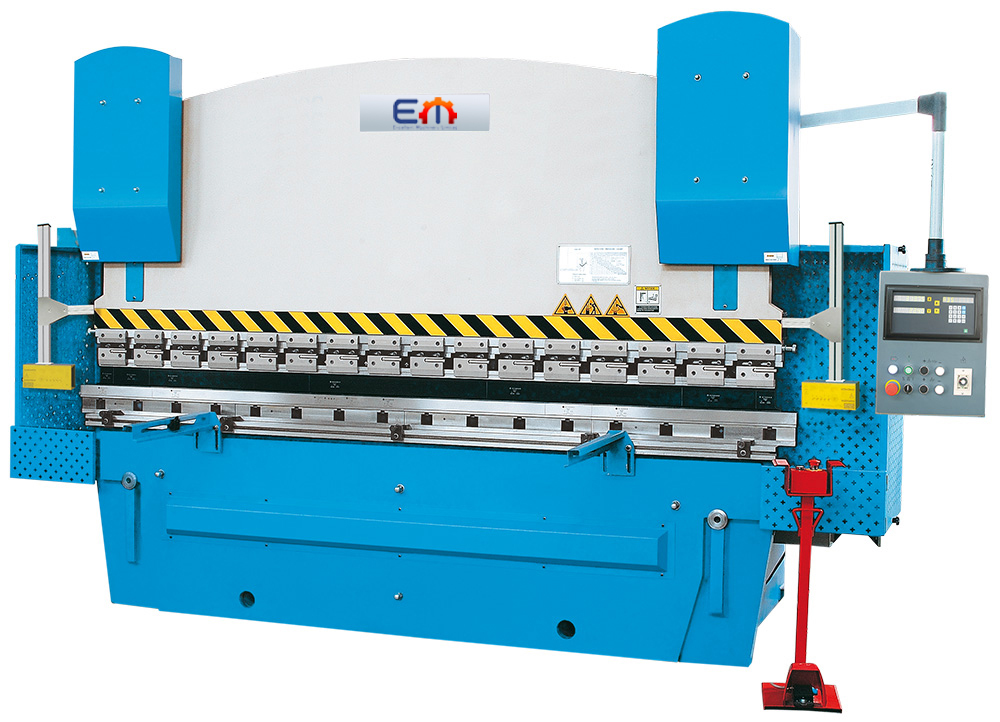

Constant angular accuracy! Heavy press with hydraulic lower table crowning
hydraulic lower crowning for significantly increased productivity
digital indicator for rear and depth stops
The press brakes of this series are manufactured in standardized bulk series to ensure solid quality and significant cost savings
The frame is made of solid steel weldment for overhead mounting
manual upper and hydraulic lower crowning ensure high manufacturing qualtiy.
Large torsion shaft guarantees synchronism between both hydraulic cylinders.
Motorized rear stop with manual micro-adjustments
Motors (from ABB) and hydraulic components from renown manufacturers guarantee high machining quality and high reliability.
Fulfills highest safety standards with Fiessler Safety System, safety interlock, and protective covers
hardened hydraulic cylinders for long service life
System male dies with 90°, 88°, 60° and 30° angles, plus clamping and radius tools upon request – many types of tools can be shipped within 24 hours
| Hydraulic Press Brake | AHK A 25100 | AHK A 32125 | AHK A 32200 |
| working area | |||
| pressure force | 100 t | 125 t | 200 t |
| brake length | 2500 mm | 3200 mm | 3200 mm |
| rear stop | 600 mm | 600 mm | 600 mm |
| distance between columns | 2000 mm | 2700 mm | 2700 mm |
| throat | 350 mm | 350 mm | 400 mm |
| stroke length, max. | 160 mm | 160 mm | 200 mm |
| bending speed | 9 mm/s | 9 mm/s | 7,5 mm/s |
| rapid feed | 4800 mm/min | 4800 mm/min | 4800 mm/min |
| return speed | 70 mm/s | 90 mm/s | 90 mm/s |
| drive capacity | |||
| motor rating main drive | 7,5 kW | 11 kW | 15 kW |
| measures and weights | |||
| hydraulic tank volume | 250 l | 480 l | 480 l |
| overall dimensions | 2600x1620x2500 mm | 3300x1680x2540 mm | 3410x1780x2740 mm |
| weight | 6700 kg | 8600 kg | 12500 kg |
,
,
