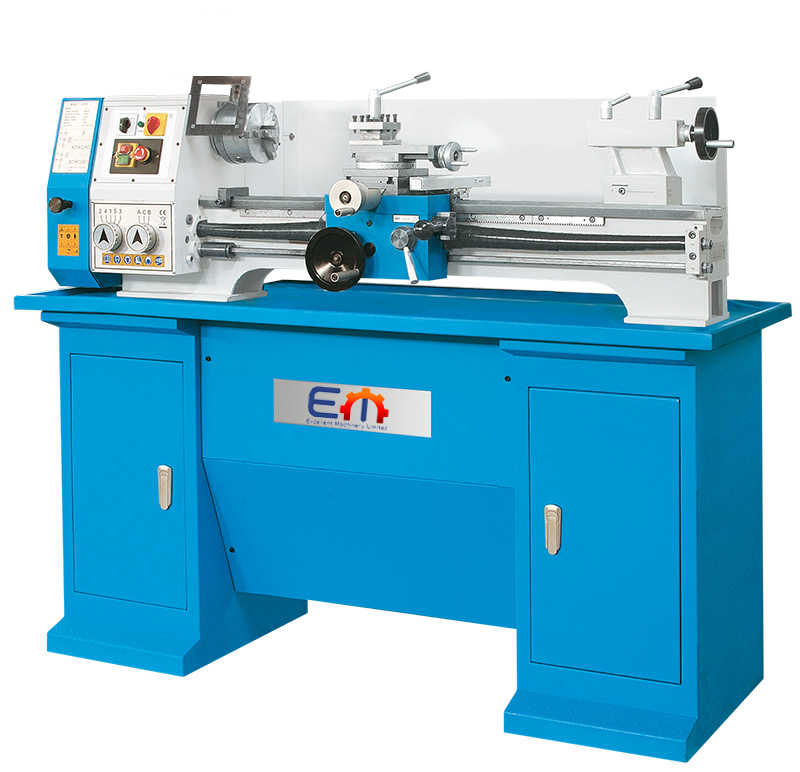

LS 750 - Mechanics Lathe


Compact Precision Bench Lathe with large center width – universal use in workshops and training facilities

Rigid cast-iron machine bed with hardened and ground dual V-guides
all guides are adjustable
large headstock with adjustable tapered roller bearings and 25 mm capacity
headstock gears run in oil-bath and feature hardened gears and 6 gear steps
Feed gears with oil-bath lubrication, featuring a wide selection of fine incremented feeds and frequently used thread leads
feed shaft with overload clutch for automatic feed on X and Z
leadscrew ensures precise thread turning
incl. 2-axis position indicator, fully assembled

LS 750 – Mechanics Lathe
working area
workpiece length (max.)750 mm
turning diameter over bed (max.)280 mm
turning diameter over support (max.)164 mm
turning diameter without gap bridge (max.)240 mm
travel X-axis155 mm
travel Z1-axis80 mm
workpiece weight (max.)15 kg
gap bridge length750 mm
bed width155,5 mm
swing range of top slide± 45 °
speed range125 – 2000 rpm
spindle bore25 mm
spindle taperMT 4
feed X-axis0,03 – 0,3 mm/R
feed Z-axis0,015 – 0,15 mm/R
rapid feed X-axis3,75 – 600 mm/min
rapid feed Z-axis1,875 – 300 mm/min
tapping, module0,25 – 2,5 mm
tapping, whitworth12 – 96 TPI
tailstock taperMT 2
tailstock quill stroke85 mm
drive capacity
motor rating main drive0,735 kW
supply voltage230 V
measures and weights
overall dimensions1500x750x1400 mm
weight230 kg
