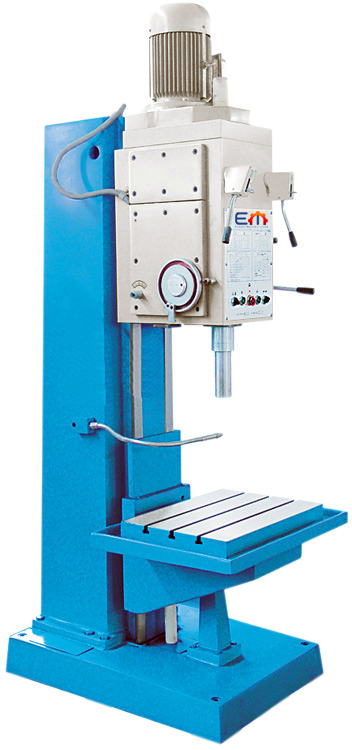

KSB 25A – Box-Column Drill Press

KSB 25A – Box-Column Drill Press

KSB 25A - Box-Column Drill Press

Feature:

Superior Rigidity for Demanding Drilling, Reaming and Thread-Cutting Tasks

box-column design provides high load capacity, and is torsion-proof and rigid
table and drill head can be moved individually for an optimum machining height
9-step feed and speed gears, with oil-bath lubrication
high torque across the entire speed range
thread-cutting unit automatically reverses upon reaching the preset depth

KSB 25A – Box-Column Drill Press
drilling capacity25 mm
working area
table set up area400×550 mm
T-slots, width14 mm
number of T-slots3 Pieces
quill stroke200 mm
table stroke300 mm
Vorschub Z-Achse(9) 0,056 – 1,8 mm/R
feed force, axial (max.)9 kN
spindle nose-to-table distance (max.)725 mm
throat280 mm
vertical head travel200 mm
headstock
spindle speed(9) 50 – 2000 rpm
headstock torque160 Nm
spindle taperMT 3
drive capacity
motor rating main drive2,2 kW
motor rating coolant pump0,09 kW
measures and weights
Fördermenge25 l/min
overall dimensions962x847x2340 mm
weight950 kg

,
