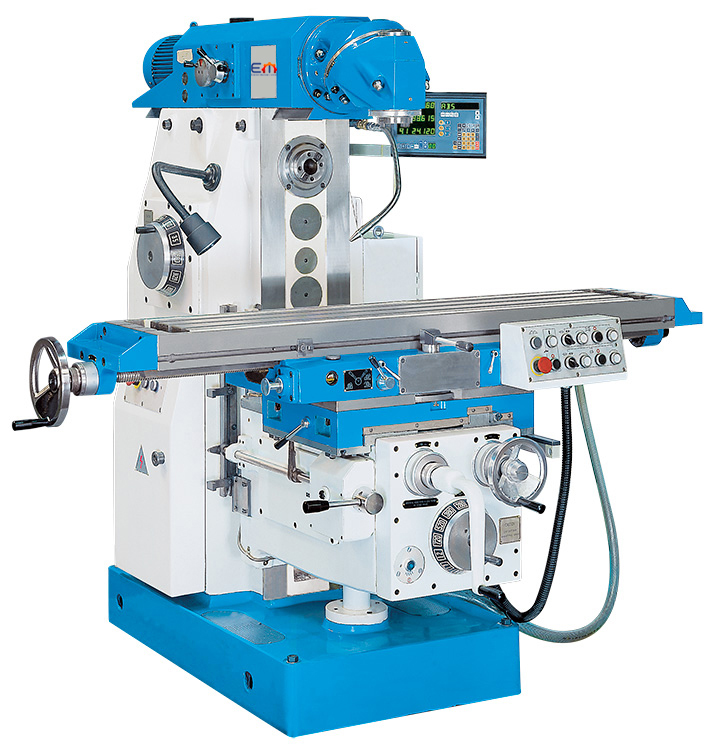

Universal Milling Machine with heavy-duty cast-iron design
The machine frame features a box-shaped, heavy-ribbed construction. This design allows the machine to absorb all static and dynamic forces ensuring maximum rigidity.
Ground gears ensure very quiet operation
cutter head swivels for horizontal, vertical and angular cutting
high intrinsic rigidity
convenient lay out of all controls
automatic feeds and rapid feeds on all 3 axes
universal cutter head on 2 levels
work table rotates ± 45°
simultaneous machining of a workpiece with horizontal and vertical spindle is possible
| UFM 3 Plus – Universal Milling Machine | |
| working area | |
| travel X-axis | 780 mm |
| travel Y-axis | 235 mm |
| travel Z-axis | 400 mm |
| travel Z1-axis | 470 mm |
| table dimensions | 1500×300 mm |
| table load capacity (max.) | 250 kg |
| number of T-slots | 3 Pieces |
| T-slots, width | 18 mm |
| T-slots, spacing | 70 mm |
| table swivel range (max.) | ± 45° |
| feed | |
| rapid feed X-axis | 2100 mm/min |
| rapid feed Y-axis | 2100 mm/min |
| rapid feed Z-axis | 700 mm/min |
| feed speed X-axis | (14) 17 – 720 mm/min |
| feed speed Y-axis | (14) 17 – 720 mm/min |
| feed speed Z-axis | (14) 4 – 240 mm/min |
| vertical milling head | |
| spindle speed (vertical) | (8) 67 – 1600 rpm |
| spindle mount (vertical) | ISO 40 |
| horizontal milling head | |
| spindle speed (horizontal) | (12) 35 – 1600 rpm |
| spindle mount (horizontal) | ISO 40 |
| horizontal spindle-to-table surface distance | 20 – 420 mm |
| drive capacity | |
| motor rating horizontal spindle | 4 kW |
| motor rating vertical spindle | 2,2 kW |
| motor rating feed | 0,75 kW |
| measures and weights | |
| overall dimensions | 1695x1535x1728 mm |
| weight | 2850 kg |
,
,
,
