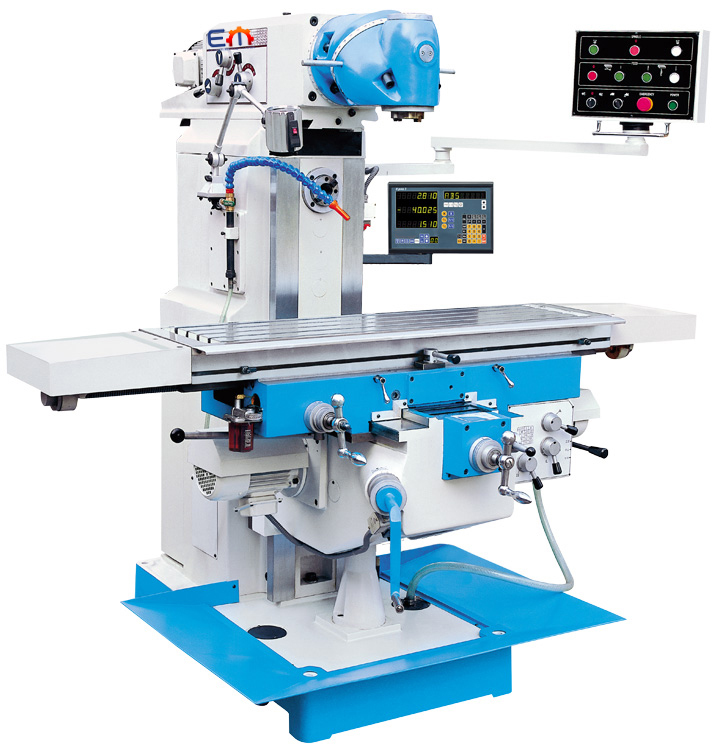

UWF 3 – Universal Milling Machine

UWF 3 – Universal Milling Machine

UWF 3 - Universal Milling Machine


Sturdy Universal Milling Machine with swivelling cutter head for universal machining applications

sturdy, zero-backlash rectangular guideways
Universal cutter head with 2 levels can be adjusted to virtually any angle (HURON System)
rapid feeds on all axes allow quick positioning
control panel swivels for comfortable operation
separate drives with gearbox for powerful material removal
large machine table with one 1000 mm X travel

UWF 3 – Universal Milling Machine
working area
travel X-axis1000 mm
travel Y-axis245 mm
travel Z-axis450 mm
table set up area1320×320 mm
table load capacity (max.)260 kg
number of T-slots5 Pieces
T-slots, width14 mm
T-slots, spacing63 mm
rapid feed X-axis1200 mm/min
rapid feed Y-axis1200 mm/min
rapid feed Z-axis400 mm/min
feed speed X-axis(8) 20 – 360 mm/min
feed speed Y-axis(8) 20 – 360 mm/min
vertical milling head
spindle speed (vertical)(11) 45 – 1660 rpm
spindle mount (vertical)SK 40
throat200 – 760 mm
spindle nose-to-table surface distance200 – 650 mm
milling head swivel range360 °
horizontal milling head
spindle speed (horizontal)(12) 40 – 1300 rpm
spindle mount (horizontal)SK 40
horizontal spindle-to-table surface distance20 – 470 mm
spindle axis-to-table surface distance200 – 650 mm
drive capacity
motor rating horizontal spindle3 kW
motor rating vertical spindle3 kW
motor rating X-axis0,55 kW
motor rating Y0,55 kW
motor rating Z0,75 kW
motor rating coolant pump0,09 kW
measures and weights
overall dimensions2020x1710x1994 mm
weight2000 kg
