Feature:
Solid design, stabile construction
for vertical and horizontal machining
heavy machine frame with wide, adjustable dovetail guides in all axes
stable universal milling head which can be rotated in two planes in almost every solid angle
automatic table feed X / Y-axis rapid traverse
height adjustment in the Z-direction

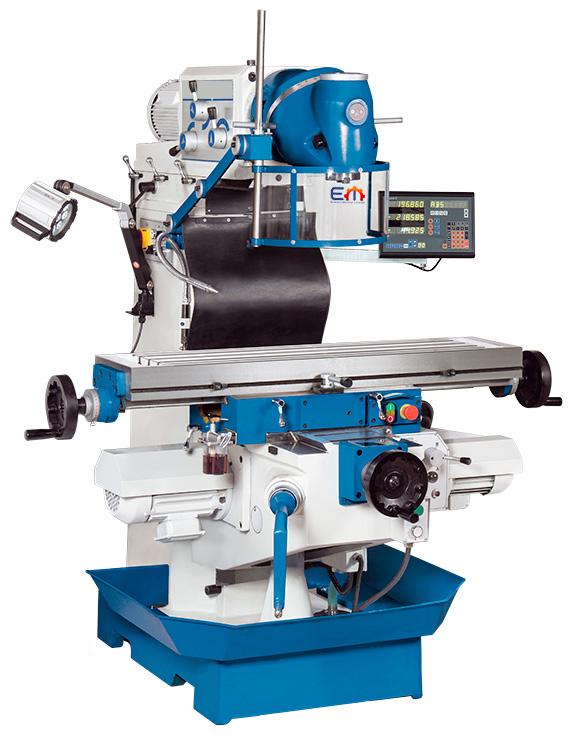

| UWF 1.1 – Universal Milling Machine | |
| working area | |
| travel X-axis | 600 mm |
| travel Y-axis | 270 mm |
| travel Z-axis | 380 mm |
| table set up area | 1120×260 mm |
| table load capacity (max.) | 250 kg |
| number of T-slots | 3 Pieces |
| T-slots, width | 14 mm |
| T-slots, spacing | 63 mm |
| feed | |
| rapid feed X-axis | 402 mm/min |
| rapid feed Y-axis | 402 mm/min |
| rapid feed Z-axis | 422 mm/min |
| feed speed X-axis | (9) 24 – 402 mm/min |
| feed speed Y-axis | (9) 24 – 402 mm/min |
| vertical milling head | |
| speed range | 45 – 1660 rpm |
| spindle mount | ISO 40 |
| throat | 60 – 500 mm |
| vertical spindle-to-table surface distance | 100 – 480 mm |
| milling head swivel range | 360 ° |
| drive capacity | |
| motor rating main drive | 2,2 kW |
| measures and weights | |
| overall dimensions | 1660x1500x1730 mm |
| weight | 1480 kg |
,
