Highly reliable Horizontal Band Saws with comfortable miter adjustment
infinitely variable hydraulic saw advance ensures optimum cutting results and minimized tool wear
automatic shut-off upon completion of saw process
band break sensor activates automatic shut-off upon band break
helical gears, designed for continuous operation with above average life time and low maintenance
infinitely variable cutting speed from 20 to 100 m/min
coolant system
rigid guide arms
highlight
saw frame swivels allowing universal angle setting – no need to rotate the workpiece!
including feed roller stand, 1.2 m long

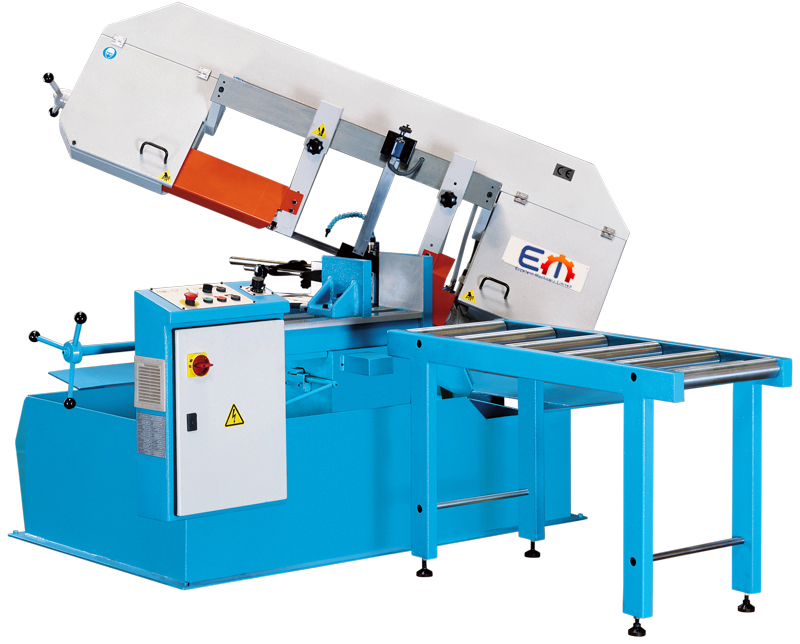

| HB 320 BS – Semi-Automatic Miter Band Saw | |
| cutting capacities | |
| cutting capacity 90° (flat) | 610×320 mm |
| cutting capacity 90° (round) | 320 mm |
| cutting capacity 90° (square) | 320 mm |
| cutting capacity 45° (flat) | 355×320 mm |
| cutting capacity 45° (round) | 320 mm |
| cutting capacity 45° (square) | 320 mm |
| cutting capacity 30° (flat) | 280×200 mm |
| cutting capacity 30° (round) | 260 mm |
| cutting capacity 30° (square) | 225 mm |
| cutting speed | 20-100 stufenlos / infinitely variable m/min |
| drive capacity | |
| motor rating main drive | 2,2 kW |
| motor rating coolant pump | 0,12 kW |
| supply voltage | 400 V |
| measures and weights | |
| belt dimensions | 4160x34x1,1 mm |
| overall dimensions | 2100x1200x1340 mm |
| weight | 1000 kg |
,
