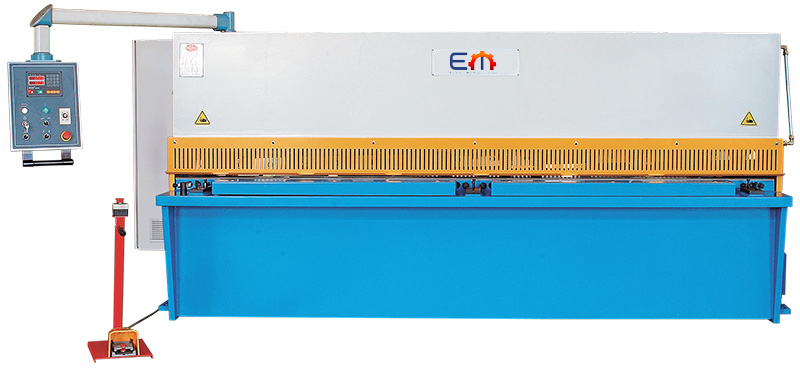

| Hydraulic Shear | KHT 3206 F BHV | KHT 4006 F BHV |
| working area | ||
| plate thickness (max.) | 6 mm | 6 mm |
| working length | 3200 mm | 4000 mm |
| rear stop | 560 mm | 560 mm |
| cutting angle | 1,5 ° | 1,5 ° |
| strokes per minute | 18 H/min | 15 H/min |
| hold-down | 13 Pieces | 18 Pieces |
| work table height | 800 mm | 800 mm |
| number of support arms | 3 Pieces | 4 Pieces |
| drive capacity | ||
| motor rating hydraulic pump | 7,5 kW | 7,5 kW |
| measures and weights | ||
| hydraulic tank volume | 290 l | 380 l |
| overall dimensions | 3840x1610x1620 mm | 4630x1850x1700 mm |
| weight | 6600 kg | 8900 kg |
,
