Feature:
The top machine of the WF family – maximum efficiency and easy operation – including digital position indicator
automatic feeds on all 3 axes
outer arbor support for horizontal milling
heavily ribbed cast-iron machine stand ensures maximum static and dynamic rigidity
optimum layout of operating controls on the right-hand side
vertical head quill for drilling, with hand lever feed
quill stroke 80 mm
central lubrication
chip collector pan

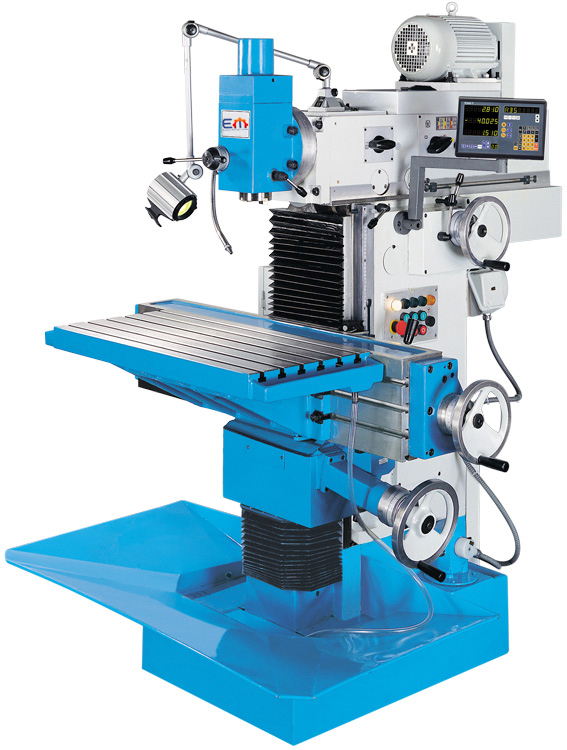

| WF 4.1 – Tool Milling Machine | |
| working area | |
| travel X-axis | 500 mm |
| travel Y-axis | 400 mm |
| travel Z-axis | 400 mm |
| table dimensions | 800×400 mm |
| T-slots (number/width/spacing) | 6x14x63 mm |
| vertical table | 1060×250 mm |
| T-slots, vertical table (number x width x spacing) | 3x14x63 mm |
| table load capacity (max.) | 200 kg |
| feed | |
| rapid feed X-axis | 1200 mm/min |
| rapid feed Y-axis | 1200 mm/min |
| rapid feed Z-axis | 1200 mm/min |
| feed speed X-axis | 10 – 380 mm/min |
| feed speed Y-axis | 10 – 380 mm/min |
| feed speed Z-axis | 10 – 380 mm/min |
| vertical milling head | |
| spindle speed (vertical) | (18) 40 – 2000 rpm |
| spindle mount (vertical) | SK 40 |
| quill stroke | 80 mm |
| throat | 540 mm |
| spindle nose-to-table surface distance | 50 – 450 mm |
| horizontal milling head | |
| horizontal spindle-to-table surface distance | 50 – 450 mm |
| drive capacity | |
| motor rating main drive | 3 kW |
| motor rating feed | 1,1 kW |
| measures and weights | |
| overall dimensions | 1390x1430x1820 mm |
| weight | 1400 kg |
,
