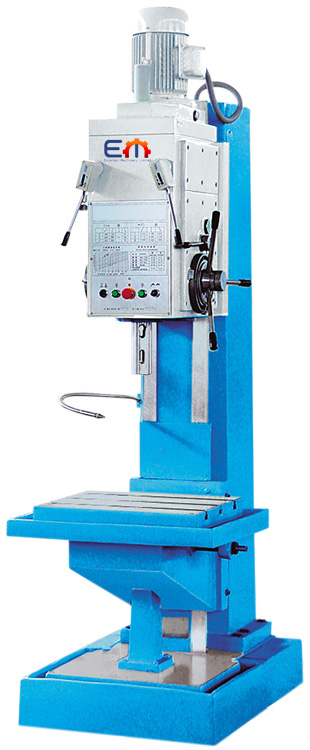

KSB 50C - Box-Column Drill Press

Feature:

Superior Rigidity for Demanding Drilling, Reaming and Thread-Cutting Tasks

box-column design provides high load capacity, and is torsion-proof and rigid
table and drill head can be moved individually for an optimum machining height
9-step feed and speed gears, with oil-bath lubrication
high torque across the entire speed range
thread-cutting unit automatically reverses upon reaching the preset depth

KSB 50C – Box-Column Drill Press
drilling capacity50 mm
working area
table set up area480×560 mm
T-slots, width18 mm
number of T-slots3 Pieces
quill stroke250 mm
table stroke315 mm
Vorschub Z-Achse(9) 0,056 – 1,8 mm/R
feed force, axial (max.)16 kN
spindle nose-to-table distance (max.)725 mm
throat335 mm
vertical head travel195 mm
headstock
spindle speed(9) 45 – 850 rpm
headstock torque350 Nm
spindle taperMT 5
drive capacity
motor rating main drive4 kW
motor rating coolant pump0,09 kW
measures and weights
Fördermenge25 l/min
overall dimensions1040x905x2535 mm
weight1250 kg

,

,
