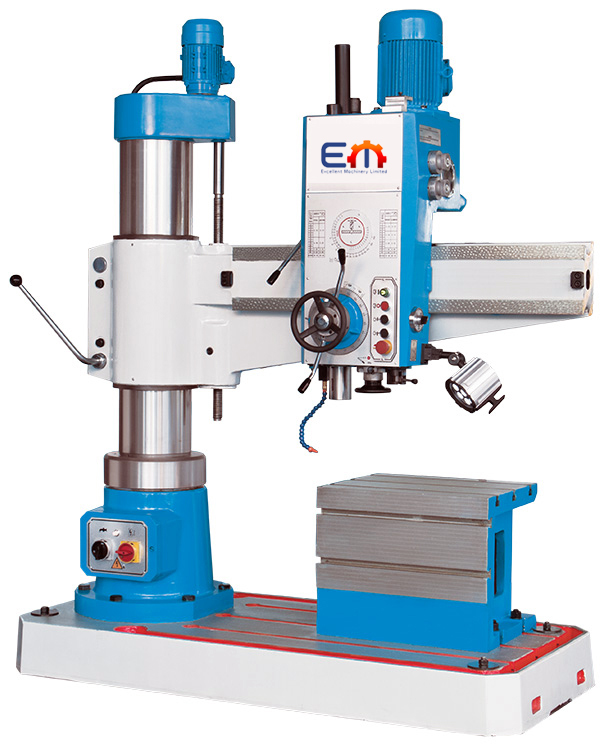

EM Radial Drill Presses – perfect in every detail, powerful, rigid and easy to handle

Base, column, boom and gear head are made of premium high-quality cast
major design features include a large column and a highly torsion-resistant boom
boom height adjustment via a powerful motorized drive and vertical spindle
the boom lifting gears run in an oil-bath for maximum reliability and minimum wear
advanced column swivel design with optimized clamping features maximum rigidity and minimum clamping offset
swivel axis and travel axis feature extremely smooth operation to make the operator’s everyday production work easier
the gears feature hardened and precision-ground chrome-nickel steel gears for smooth and low-noise operation
all gear parts are lubricated reliably via oil pump
the main spindle runs on precision bearings and features an automatic spindle brake
Proven performance, quality and cost-effectiveness
quill teeth are precision-ground for a smooth feed and minimum wear
the drill head moves on hardened and ground guideways
all models feature adjustable overload clutches in the feeds
adjustable boring depth stop with large, easy to read scale and Nonius
all operator controls are placed within reach for convenient and practical handling and quick learning
powerful coolant system with coolant reservoir integrated into the machine foot
40 mm boring capacity, large throat and compact dimensions
spindle speeds and feed velocity are hydraulically controlled for easy and safe operation
the drill spindle is driven via multi-disk reversing clutch for smooth change-overs between forward and reverse
independent manual clamping of drill head and boom
the boom can be moved vertically, while column and head remain clamped and fixed in their positions
the drill head can be moved radially and positioned with high precision via a centrally located hand-wheel
a clamping lever at the drill head allows the operator to pre-select, if the boom should be released for swiveling, whereby both axes will be simultaneously fixed in the requested position above the drill head clamping lever

R 40 – Radial Drill Press
drilling capacity40 mm
tapping capacity, steelM 30
tapping capacity, cast-ironM 36
drilling depth (max.)250 mm
working area
machine table dimensions939x598x150 mm
cube table dimensions450x600x450 mm
throat250 – 1000 mm
spindle nose-to-table surface distance220 – 520 mm
drill head travel (horizontal)750 mm
arm stroke (vertical)550 mm
speed range(8) 71 – 1800 rpm
spindle mountMK 4 / MT 4
feeds(4) 0,13 – 0,54 mm/R
drive capacity
motor rating main drive2,2 kW
stroke motor0,75 kW
measures and weights
overall dimensions1740x750x2010 mm
weight1400 kg
