Feature:
Cutter head with variable angle, plus large travel distances ensure maximum versatility
The machine head height is adjusted by dovetail guide and lift motor with spindle to provide precise travel. This results in a significantly improved stability during milling operation compared to column-guided systems.
automatic quill feed (3 steps)
all functional groups feature a sturdy and safe structure
tapping unit with automatic reversal of spindle rotation upon reaching the pre-set depth
quill stroke can be changed to manual micro-feed
digital depth indicator and 3-axis position indicator are standard

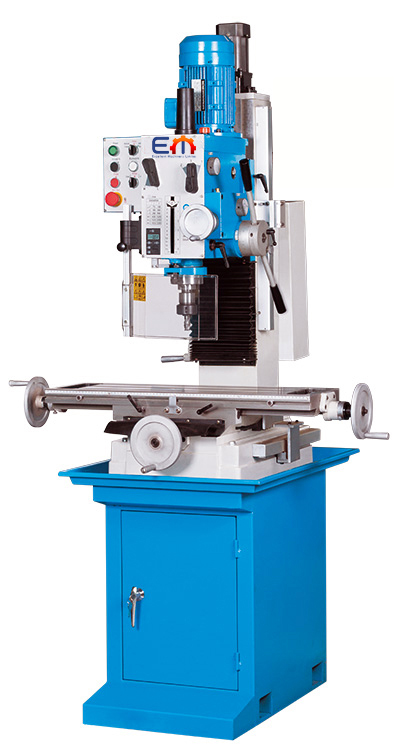

| Mark Super S – Drill Press / Milling Machine | |
| weight | 350 kg |
| working area | |
| travel X-axis | 560 mm |
| travel Y-axis | 190 mm |
| table dimensions | 800×240 mm |
| drilling capacity | 32 mm |
| shaft milling | 32 mm |
| head elevation | 350 mm |
| speed | (12) 75 – 3200 rpm |
| spindle axis-to-table surface distance | 450 mm |
| number of T-slots | 3 Pieces |
| T-slots, width | 14 mm |
| T-slots, spacing | 80 mm |
| vertical milling head | |
| spindle mount | MK 4 / MT 4 |
| quill stroke | 120 mm |
| quill diameter | 75 mm |
| throat | 258 mm |
| head swivel range | ± 90° |
| drive capacity | |
| motor rating main drive | 1,5 kW |
| main drive, continuous load | 1,1 kW |
| supply voltage | 400 V |
| measures and weights | |
| overall dimensions | 1120x960x1980 mm |
,
