MF 1 – Multipurpose Milling Machine | |
working area | |
travel X-axis | 670 mm |
travel Y-axis | 290 mm |
travel Z-axis | 370 mm |
table set up area | 1060×230 mm |
number of T-slots | 3 Pieces |
T-slots, width | 16 mm |
T-slots, spacing | 63,5 mm |
feed | |
quill feeds | (3) 0,04; 0,08; 0,15 mm/R |

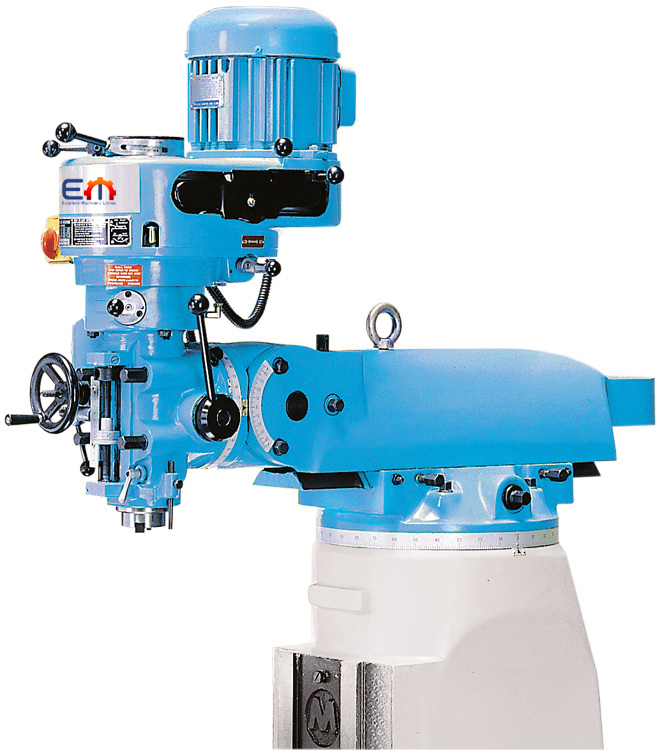

vertical milling head | |
spindle speed (vertical) | (16) 80 – 4500 rpm |
spindle mount (vertical) | SK 30 |
quill stroke | 127 mm |
throat | 171 – 476 mm |
drive capacity | |
motor rating main drive | 2,2 kW |
measures and weights | |
overall dimensions | 2000x1600x2088 mm |
weight | 1100 kg |
