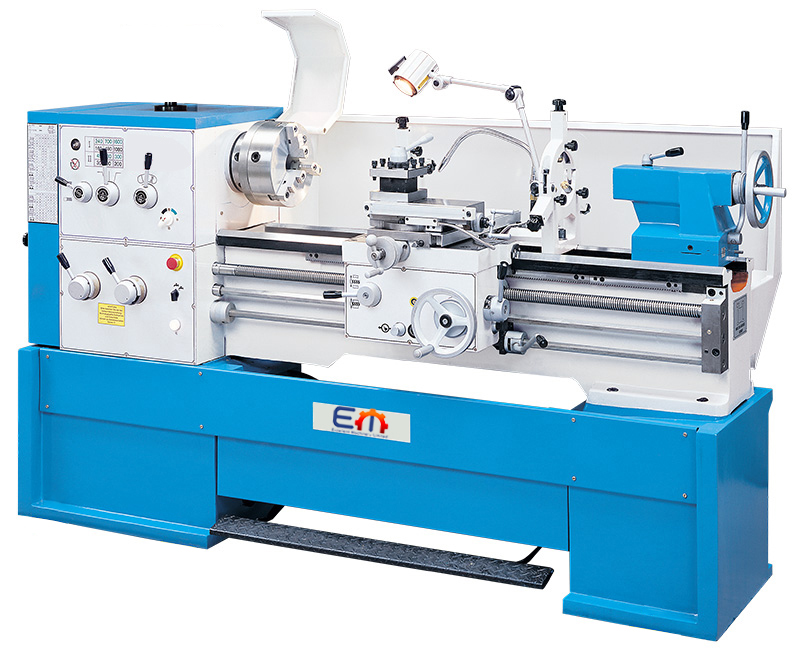

DM 1000 A - Universal Lathe


Highly reliable, durable standard lathe with long-standing proven performance!

large 52 mm spindle capacity
powerful motor, 5.5 kW
complete accessory set
adjustable slip clutch eliminates tooth breakage caused by overload conditions
foot brakes for instant headstock stopping and shut off
chuck protector
hardened and ground gears and shafts
heavy-duty, large-sized bed, hardened and precision-ground
slide guideway adjustable through taper gibs
gap bridge
left part of main spindle supported on tapered roller bearings and thrust bearings
right part of main spindle supported on double-row cylindrical roller bearings
headstock runs in oil-bath
mount: Camlock D1-6
feed drive gears and apron run in oil-bath

DM 1000 A – Universal Lathe
working area
workpiece length (max.)1000 mm
turning diameter over bed (max.)400 mm
turning diameter over support (max.)240 mm
turning diameter over gap bridge (max.)580 mm
travel X-axis225 mm
travel Z1-axis140 mm
gap bridge length200 mm
bed width290 mm
swing range of top slide± 45 °
spindle speed(12) 30 – 1600 rpm
spindle bore52 mm
spindle mountCamlock D1-6
spindle taperMT 6
feed X-axis0,055 – 0,1 mm/R
feed Z-axis0,039 – 1,1 mm/R
tapping, metric(25) 0,5-20 mm
tapping, diametric(30) 160-3 1/2 DP
tapping, module(24) 0,25 – 10 mm
tapping, whitworth(35) 80-1 3/4 GPZ
tailstock quill diameter60 mm
tailstock taperMT 4
tailstock quill stroke130 mm
tailstock traverse adjustment± 10 mm / ± 0,4″
drive capacity
motor rating main drive5,5 kW
supply voltage400 V
measures and weights
overall dimensions2180x970x1280 mm
weight1450 kg
