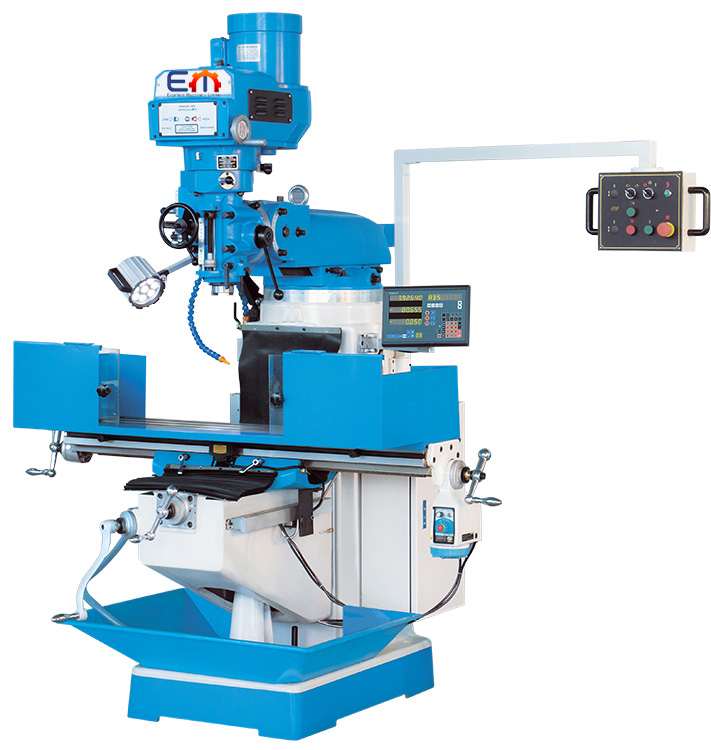

| MF 1 V – Multipurpose Milling Machine | |
| working area | |
| travel X-axis | 760 mm |
| travel Y-axis | 290 mm |
| travel Z-axis | 370 mm |
| table set up area | 1245×230 mm |
| number of T-slots | 3 Pieces |
| T-slots, width | 16 mm |
| T-slots, spacing | 63,5 mm |
| feed | |
| feed speed X-axis | 19 – 890 mm/min |
| quill feeds | (3) 0,04; 0,08; 0,13 mm/R |
| console travel (Z-axis) | 370 mm |
| vertical milling head | |
| Spindeldrehzahl (stufenlos) | 70 – 3600 rpm |
| spindle mount (vertical) | SK 30 |
| quill stroke | 127 mm |
| throat | 171 – 476 mm |
| drive capacity | |
| motor rating main drive | 2,25 kW |
| measures and weights | |
| overall dimensions | 2045x1630x2070 mm |
| weight | 950 kg |
,
,
