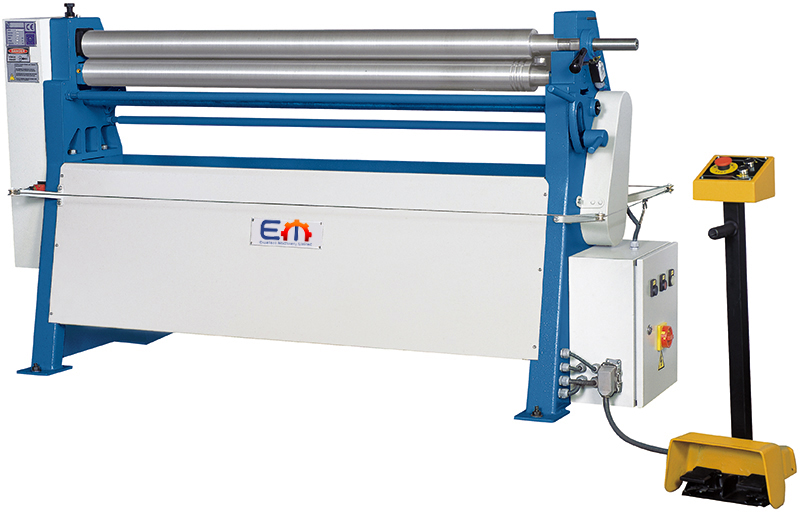

| 3-Roller Roll Bender | KRM-A 10/3.0 | KRM-A 12/2.5 | KRM-A 15/2.2 | KRM-A 20/1.5 |
| working area | ||||
| working length | 1050 mm | 1250 mm | 1550 mm | 2050 mm |
| plate thickness (max.) | 3,3 mm | 3 mm | 2,5 mm | 2 mm |
| max. plate thickness for bending | 3 mm | 2,5 mm | 2,2 mm | 1,5 mm |
| bending diameter | 130 mm | 130 mm | 130 mm | 135 mm |
| roll diameter | 90 mm | 90 mm | 90 mm | 95 mm |
| roller speed | 6 m/min | 6 m/min | 6 m/min | 6 m/min |
| drive capacity | ||||
| motor rating main drive | 1,1 kW | 1,1 kW | 1,1 kW | 1,1 kW |
| measures and weights | ||||
| overall dimensions | 2100x800x1130 mm | 2350x800x1130 mm | 2600x800x1130 mm | 3030x800x1130 mm |
| weight | 500 kg | 570 kg | 570 kg | 635 kg |
,
