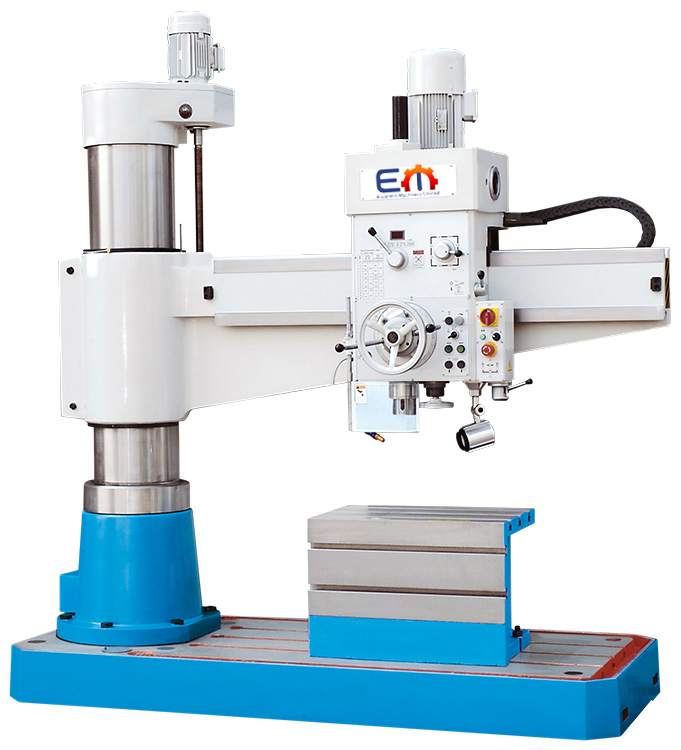

R 60 V - Radial Drill Press

EM Radial Drill Presses – perfect in every detail, powerful, rigid and easy to handle

Base, column, boom and gear head are made of premium high-quality cast
major design features include a large column and a highly torsion-resistant boom
boom height adjustment via a powerful motorized drive and vertical spindle
the boom lifting gears run in an oil-bath for maximum reliability and minimum wear
advanced column swivel design with optimized clamping features maximum rigidity and minimum clamping offset
swivel axis and travel axis feature extremely smooth operation to make the operator’s everyday production work easier
the gears feature hardened and precision-ground chrome-nickel steel gears for smooth and low-noise operation
all gear parts are lubricated reliably via oil pump
the main spindle runs on precision bearings and features an automatic spindle brake
Proven performance, quality and cost-effectiveness
quill teeth are precision-ground for a smooth feed and minimum wear
the drill head moves on hardened and ground guideways
all models feature adjustable overload clutches in the feeds
adjustable boring depth stop with large, easy to read scale and Nonius
all operator controls are placed within reach for convenient and practical handling and quick learning
powerful coolant system with coolant reservoir integrated into the machine foot
Optimum size/performance ratio and a new drive technology make this a bestseller
infinitely variable spindle speed and easy to read digital display
the quills feature guided counterweights for easy handling and increased safety
independent hydraulic clamping: boom can be moved vertically without losing the spindle-to-bore alignment
drill head and column can be clamped/released together or separately with the push of a button
a central lubrication system ensures reliable lubrication of the column

R 60 V – Radial Drill Press
drilling capacity62 mm
tapping capacity, steelM 46
tapping capacity, cast-ironM 52
drilling depth (max.)315 mm
working area
machine table dimensions2400x1000x200 mm
cube table dimensions500x710x500 mm
throat350 – 1600 mm
spindle nose-to-table surface distance350 – 1250 mm
drill head travel (horizontal)1250 mm
arm stroke (vertical)585 mm
speed range38 – 2000 rpm
spindle mountMK 5 / MT 5
feeds0,06 – 1 mm/R
drive capacity
motor rating main drive4 kW
stroke motor1,5 kW
measures and weights
overall dimensions2490x1050x2780 mm
weight3800 kg
