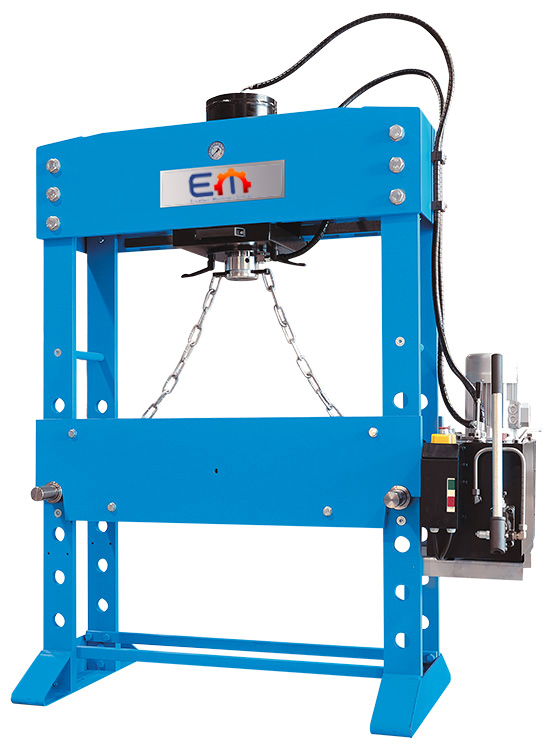

Hydraulic Shop Press
with double-acting cylinder
ideal for repair and assembly work
truing of axles, supports, shafts and much more
for removal and pressfitting bearings and bushings
with motorized hydraulic drive
automatic piston return
2-step hydraulic unit
supply voltage 3×400 V / 50 Hz
horizontal piston adjustment
press frame features high rigidity, functionality and excellent finish
| Hydraulic Workshop Presses | KNWP 60 HM | KNWP 100 HM | KNWP 160 HM | KNWP 200 HM |
| working area | ||||
| pressure force | 60 t | 100 t | 160 t | 200 t |
| operating pressure (max.) | 259 bar | 258 bar | 255 bar | 243 bar |
| stroke | 380 mm | 380 mm | 400 mm | 400 mm |
| forward motion speed | 8,69 mm/s | 7,54 mm/s | 7,48 mm/s | 5,73 mm/s |
| press speed | 2,07 mm/s | 2,47 mm/s | 2,4 mm/s | 1,84 mm/s |
| return speed | 10,79 mm/s | 9,06 mm/s | 9,35 mm/s | 7,08 mm/s |
| drive capacity | ||||
| motor rating hydraulic pump | 1,5 kW | 2,2 kW | 3 kW | 3 kW |
| measures and weights | ||||
| hydraulic tank volume | 30 l | 30 l | 30 l | 30 l |
| weight | 540 kg | 970 kg | 1195 kg | 1690 kg |
,
