| Model | Unit | SG60160SD | SG60220SD | SG60300SD | SG60600SD | |
| SG60160CNC | SG60220CNC | SG60300CNC | SG60600CNC | |||
| table size | mm | 610×1600 | 610×2200 | 610×3000 | 610×6000 | |
| Max. grinding (L×W) | mm | 610×1600 | 610×2200 | 610×3000 | 610×6000 | |
| Max. distance from spindle center to table surface | mm | 820/1050(925) | 800/1050 | |||
| Magnetic chuck size | mm | 600×800×2 | 600×1000×2 | 600×1000×3 | 600×1000×6 | |
| table longitudinal movement speed | m/min | 5-25 | ||||
| wheel head cross movement | auto intermittent feed | mm/t | 1-30 | |||
| rapid feed | mm/min | 50-2000 | ||||
| manual feed of electro handwheel | mm/gra | 0.005 | ||||
| wheel head vertical movement | auto down feed | mm/t | 0.005-0.05 | |||
| rapid feed | mm/min | 50-2000 | ||||
| manual feed of electro handwheel | mm/gra | 0.005 | ||||
| grinding wheel | wheel speed | rpm | 960(1450) | |||
| wheel size | mm | 500×75×305(450×75×203) | 500×100×305 | |||
| pindle motor | KW | 18.5 | ||||
| Max. loading capacity (including magnetic chuck) | kg | 1230 | 1690 | 2300 | 6000 | |
| total rated power | KVA | 28.5 | 38.5 | |||
| height of machine | mm | 2720/2920 | 2800/3000 | |||
| floor space(L*W) | mm | 4700×3000 | 6000×3000 | 8200×3000 | 1700×3000 | |
| machine weight | kg | 8500 | 9500 | 12500 | 25000 | |
| Model | Unit | SG80160SD | SG80220SD | SG80300SD | SG80400SD | |
| SG80160CNC | SG80220CNC | SG80300CNC | SG80400CNC | |||
| table size | mm | 810×1600 | 810×2200 | 810×3000 | 810×4000 | |
| Max. grinding (L×W) | mm | 810×1600 | 810×2200 | 810×3000 | 810×4000 | |
| Max. distance from spindle center to table surface | mm | 820/1050(925) | ||||
| Magnetic chuck size | 800×800×2 | 800×1000×2 | 800×1000×3 | 800×1000×4 | ||
| table longitudinal movement speed | m/min | 5-25 | ||||
| wheel head cross movement | auto intermittent feed | mm/t | 1-30 | |||
| rapid feed | mm/min | 50-2000 | ||||
| manual feed of electro handwheel | mm/gra | 0.005 | ||||
| wheel head vertical movement | auto down feed | mm/t | 0.005-0.05 | |||
| rapid feed | mm/min | 50-2000 | ||||
| manual feed of electro handwheel | mm/gra | 0.005 | ||||
| grinding wheel | wheel speed | rpm | 960（1450） | |||
| wheel size | mm | 500×75×305(450×75×203) | 500×100×305 | |||
| pindle motor | KW | 18.5 | ||||
| Max. loading capacity (including magnetic chuck) | kg | 1630 | 2240 | 3060 | 6000 | |
| total rated power | KVA | 28.5 | 28.5(29.6) | 31 | 38.5 | |
| height of machine | mm | 28.5 | 38.5 | |||
| floor space(L*W) | mm | 4700×3500 | 6000×3500 | 8200×3600 | 13500×3600 | |
| machine weight | kg | 10000 | 11500(13000) | 14000 | 22000 | |

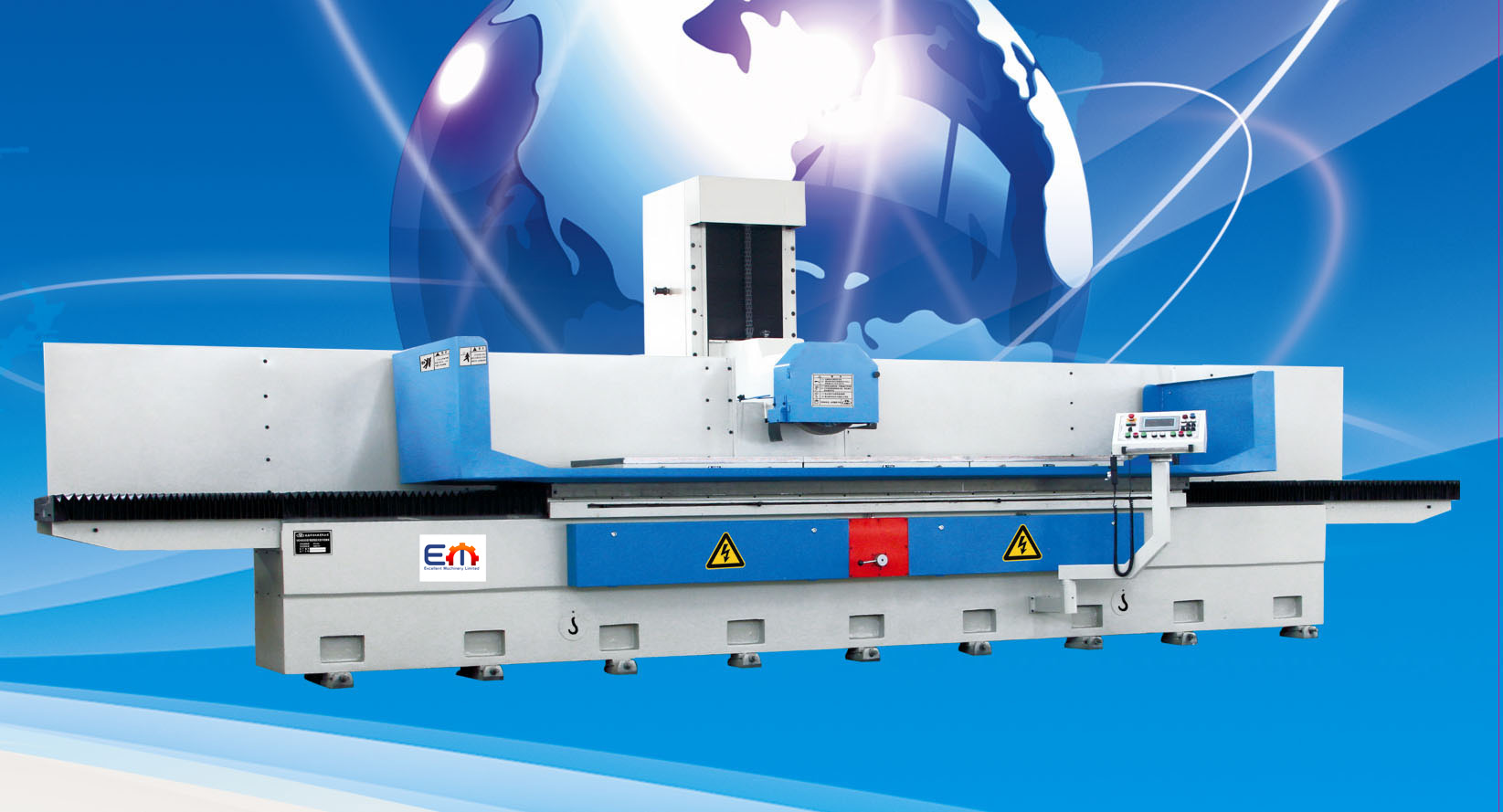

High-Performance Surface Grinders with programmable Siemens PLC Control
· servo drives on X and Y axis for maximum precision
· PLC controls Y and Z axis and provides additional programming of grinding speed
· Y and X axis can be positioned via an electronic hand wheel
· headstock runs in preloaded angular ball bearings and features a high load capacity
· X and Y axis guideways are counter-laminated (plastic)
· separate hydraulic unit with oil cooler
· X axis with high-dynamic, hydraulic drive
· combination of boxways and V-guides on X and Y, plus rectangular guideway on Z
· premium components ensure maximum accuracy for continuous operation
Standard accessories:Siemens PLC control, 2-axis position indicator, grinding wheel, hydraulic oil cooler, coolant system, magnetic clamping plate, grinding wheel flange, balancing shaft, balancing station, splatter guard, adjustable machine feet, electronic hand-wheel, diamond dresser, automatic central lubrication, automatic degausser, operating tools, operator manual
,
