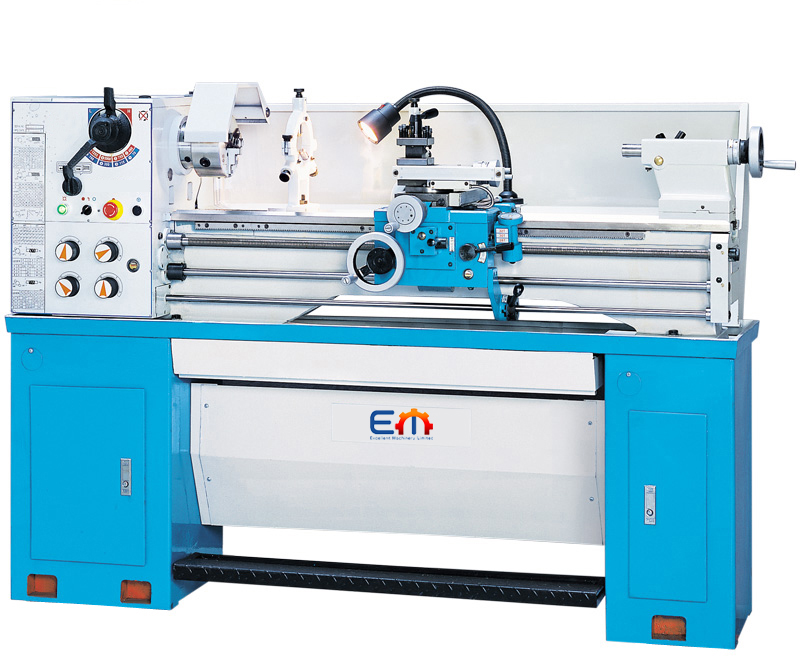

Basic 170 Super - Mechanics Lathe


Solid Precision Bench Lathe
with large center width

hardened and ground headstocks gears
gap bridge
max. spindle speed 2000 rpm
adjustable headstock bearing
shift gear system to change feed direction
cast-iron bed, double v-guide, hardened and ground
interlocking feature prevents simultaneous advance of leadscrew and feed shaft
oil-bath lubricated main drive and feed gear
double-walled apron box with oil-bath lubrication
all guideways are adjustable

Basic 170 Super – Mechanics Lathe
working area
workpiece length (max.)1000 mm
turning diameter over bed (max.)330 mm
turning diameter over support (max.)198 mm
turning diameter over gap bridge (max.)470 mm
travel X-axis170 mm
travel Z1-axis95 mm
gap bridge length210 mm
bed width187 mm
swing range of top slide± 360 °
spindle speed(8) 70 – 2000 rpm
spindle bore38 mm
spindle mountCamlock D1-4
spindle taperMT 5
feed X-axis0,014 – 0,38 mm/R
feed Z-axis0,052 – 1,392 mm/R
tapping, metric(26) 0,4-7 mm
tapping, whitworth(34) 4-56 GPZ
tailstock quill diameter33 mm
tailstock taperMT 3
tailstock quill stroke100 mm
tailstock traverse adjustment± 10 mm / ± 0,5″
drive capacity
motor rating main drive1,5 kW
supply voltage400 V
measures and weights
overall dimensions1830x680x1320 mm
weight520 kg
