Versatile Use in Workshop Applications, for training and small-parts productions
With a universal drill table
swivels 45°
rotates 360° around column
adjustable depth stop
quiet belt drive operation
FWD/REV toggle switch
headstock runs in precision-bearings
12 speeds allow selection of optimum speeds at the workpiece

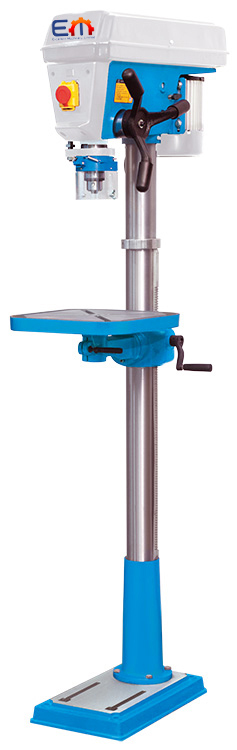

| Column Drill Press | KB 25 | KB 32 |
| drilling capacity | 25 mm | 32 mm |
| working area | ||
| table set up area | 345×345 mm | 475×425 mm |
| spindle nose-to-table distance (max.) | 140 – 850 mm | 210 – 730 mm |
| spindle nose-to-foot distance | 1360 mm | 1200 mm |
| throat | 216 mm | 254 mm |
| column diameter | 80 mm | 92 mm |
| headstock | ||
| speed range | (12) 120 – 2580 rpm | (12) 150 – 2700 rpm |
| spindle mount | MK 2 / MT 2 | MK 3 / MT 3 |
| quill stroke | 80 mm | 120 mm |
| drive capacity | ||
| motor rating main drive | 0,75 kW | 1,1 kW |
| supply voltage | 380 V | 380 V |
| measures and weights | ||
| overall dimensions | 1440x650x320 mm | 1475x650x350 mm |
| weight | 110 kg | 145 kg |
,
