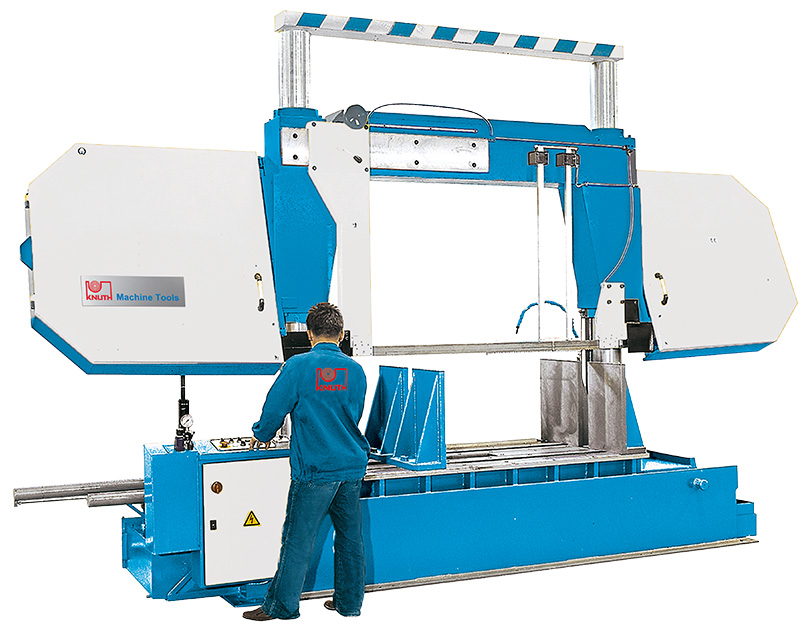

| HB 1100 – Semi-Automatic Band saw | |
| cutting capacities | |
| cutting capacity 90° (flat) | 1100×1300 mm |
| cutting capacity 90° (round) | 1100 mm |
| cutting capacity 90° (square) | 1100 mm |
| cutting capacity 45° (flat) | 850×1100 mm |
| cutting capacity 45° (round) | 850 mm |
| cutting capacity 45° (square) | 850 mm |
| cutting speed | 20-100 stufenlos / infinitely variable m/min |
| drive capacity | |
| motor rating main drive | 7,5 kW |
| motor rating hydraulic pump | 4 kW |
| motor rating coolant pump | 0,12 kW |
| supply voltage | 400 V |
| measures and weights | |
| belt dimensions | 12000x67x1,6 mm |
| overall dimensions | 5300x1200x3400 mm |
| weight | 6800 kg |
,
