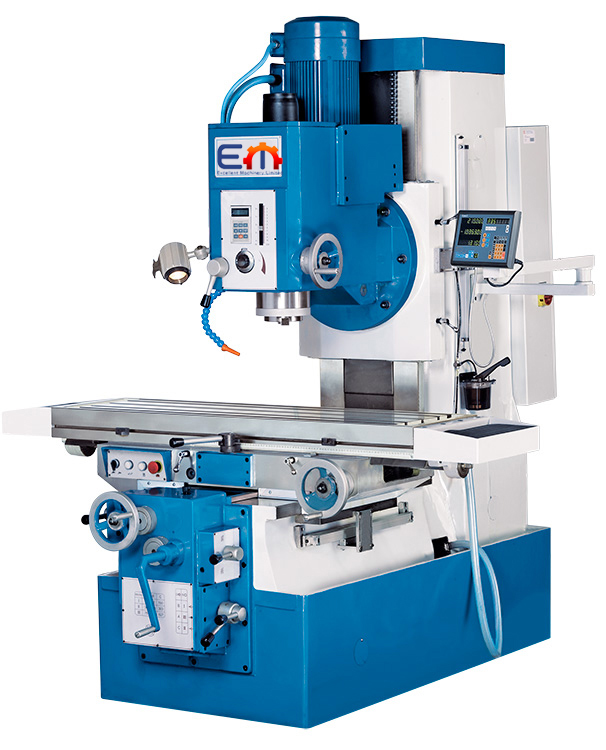

High-Capacity Bed-Type Milling Machine for large parts and heavy machining
Only the cutter head (with the part) – not the machine table – moves on the Z axis. This results in improved stability, less vibration, and ultimately in increases precision and extremely high table load capacity! This effect is emphasized even more by the large, heavy cast-iron frame (Meehanite) and extremely wide box ways.
infinitely variable speed adjustment provided through frequency drive
Rigid rectangular guideways for long-lasting accuracy
Mehanite cast-iron frame
hardened and ground guideways on all axes
cutter head swivels ± 30°
| KB 1400 – Bed-Type Milling Machine | |
| working area | |
| travel X-axis | 800 mm |
| travel Y-axis | 400 mm |
| travel Z-axis | 500 mm |
| table set up area | 1400×400 mm |
| number of T-slots | 3 Pieces |
| T-slots, width | 18 mm |
| T-slots, spacing | 100 mm |
| spindle axis-to-table surface distance | 150 – 650 mm |
| speed height-adjustment (max.) | 1670 mm/min |
| feed | |
| rapid feed X-axis | 1670 mm/min |
| rapid feed Y-axis | 1670 mm/min |
| rapid feed Z-axis | 1670 mm/min |
| feed speed X-axis | (9) 18 – 627 mm/min |
| feed speed Y-axis | (9) 18 – 627 mm/min |
| feed speed Z-axis | 18 – 627 mm/min |
| vertical milling head | |
| spindle speed (vertical) | 30 – 1800 rpm |
| spindle mount (vertical) | ISO 50 |
| throat | 510 mm |
| quill stroke | 105 mm |
| head swivel range | ± 30° |
| drive capacity | |
| motor rating main drive | 7,5 kW |
| motor rating for Z-axis drive | 0,75 kW |
| motor rating feed | 0,75 kW |
| motor rating coolant pump | 0,04 kW |
| measures and weights | |
| flow rate, coolant pump | 12 l/min |
| overall dimensions | 2290x1770x2120 mm |
| weight | 3660 kg |
,
