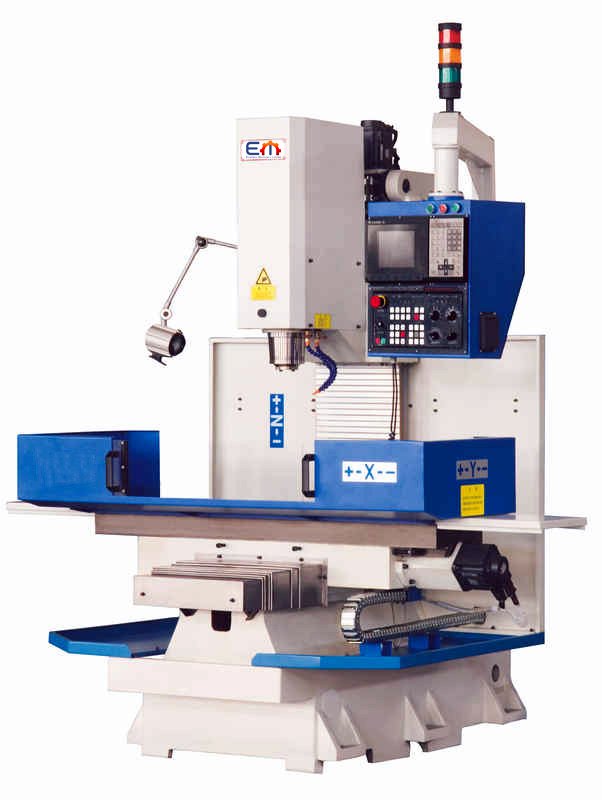

Item | Model | Unit | S-1354B | S-1654 | S-2063 | S-2063A | S-2473 | |
Table | Table size（L×W) | mm | 1370×330 | 1370×406 | 1600×510 | 1600×510 | 1854×610 |
Table loading capacity | kg | 400 | 800 | 1200 | 1200 | 1500 | |
T-slots | mm×No | 16×3 | 16×5 | 18×5 | 18×5 | 18×5 | |
Travel | X-axis | mm | 800 | 1000 | 1200 | 1200 | 1500 |
Y-axis | mm | 450 | 480 | 700 | 800 | 740 | |
Z-axis | mm | 480 | 600 | 600 | 740 | 700 | |
Max.move speed | mm/min | 8000 | 8000 | 10000 | 10000 | 10000 | |
Max.feed speed | mm/min | 3000 | 3000 | 4000 | 4000 | 4000 | |
Spindle | Spindle speed | rpm/min | RANGE:40～6000 | RANGE:40～6000 | RANGE:40～6000 | RANGE:40～6000 | RANGE:40～6000 |
Spindle nose taper | | BT40 | BT40 | BT40/BT50 | BT40/BT50 | BT40/BT50 | |
Spindle motor | kw | 5.5 | 7.5 | 7.5 | 7.5 | 7.5 | |
Servo motor | kw | 1.5 | 1.5 | 2.8 | 2.8 | 2.8 | |
Spindle quill diameter | mm | Φ120 | Φ150 | Φ150/Φ155 | Φ150/Φ155 | Φ150/Φ155 | |
Spindle to column surface | mm | 160～640 | 20～620 | 60～660 | 60～800 | 80～780 | |
Ball screws | X-axis | mm | Φ32×5 P4 Double nuts | Φ32×5 P4 Double nuts | Φ40×10 P4 Double nuts | Φ40×10 P4 Double nuts | Φ40×10 P4 Double nuts |
Y-axis | mm | Φ32×5 P4 Double nuts | Φ40×5 P4 Double nuts | Φ40×10 P4 Double nuts | Φ40×10 P4 Double nuts | Φ40×10 P4 Double nuts | |
Z-axis | mm | Φ32×5 P4 Double nuts | Φ40×5 P4 Double nuts | Φ40×10 P4 Double nuts | Φ40×10 P4 Double nuts | Φ40×10 P4 Double nuts | |
Three axis accuracy | Positioning accuracy | mm | 0.025 | 0.03 | 0.03 | 0.03 | 0.04 |
Repeatability | mm | 0.012 | 0.016 | 0.016 | 0.016 | 0.02 | |
Packing dimension | Semi-closure guard | mm | 2250×2280×2450 | 2500×2280×2650 | 2900×2280×2800 | 2900×2280×2900 | 2900×2280×2900 |
Full-closure guard | mm | 2950×2280×2450 | 3300×2280×2650 | 3600×2800×2800 | 3600×2800×2900 | 4600×2800×2900 | |
Machine weight | Semi-closure guard | kg | 2600 | 3800 | 5000 | 5400 | 6000 |
Full-closure guard | kg | 3400 | 4720 |
|
| ||
Standard accessories：semi isolated table shield, cutting fluid circulation system, auto lubrication system, spindle air flow, lamp, level adjusting screw and block, clamping apparatus
Standard control system is GSK983M,also can choose FANUC0I-MATE-MD or SIEMENS 828D
,
,
