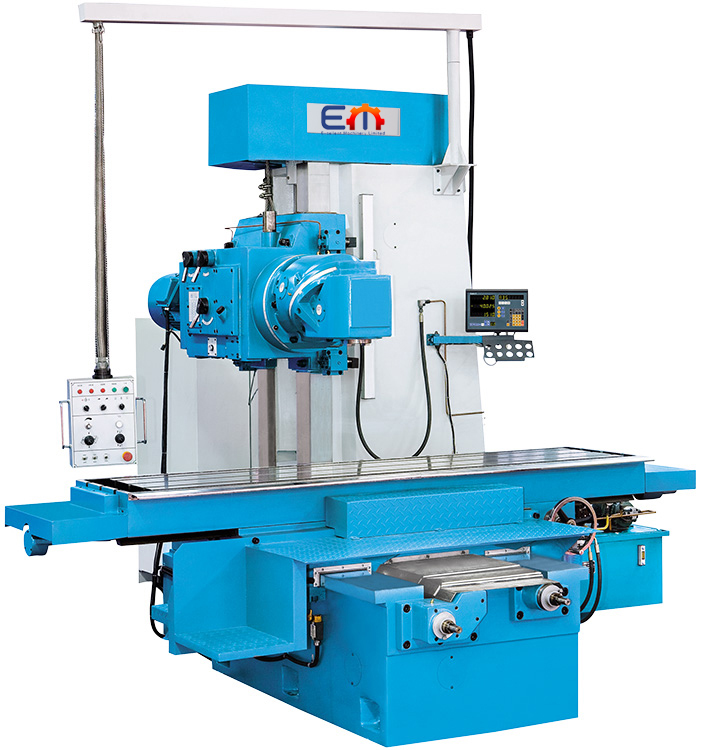

| KB 2500 – Bed-Type Milling Machine | |
| working area | |
| travel X-axis | 1800 mm |
| travel Y-axis | 600 mm |
| travel Z-axis | 900 mm |
| table dimensions | 2500×575 mm |
| table load capacity | 3000 kg |
| number of T-slots | 3 Pieces |
| T-slots, width | 22 mm |
| T-slots, spacing | 152 mm |
| feed | |
| rapid feed X-axis | 3000 mm/min |
| rapid feed Y-axis | 3000 mm/min |
| rapid feed Z-axis | 1800 mm/min |
| feed speed X-axis | 20 – 2200 mm/min |
| feed speed Y-axis | 20 – 2200 mm/min |
| feed speed Z-axis | 12 – 1320 mm/min |
| Milling Head | |
| speed range | 40 – 1200 rpm |
| spindle mount | ISO 50 |
| spindle nose-to-table surface distance | 50 – 950 mm |
| head swivel range | 360° |
| drive capacity | |
| motor rating main drive | 11 kW |
| motor rating feed | 2,9 kW |
| motor rating coolant pump | 0,09 kW |
| measures and weights | |
| overall dimensions | 4300x3200x3300 mm |
| weight | 12000 kg |
,
