Feature:

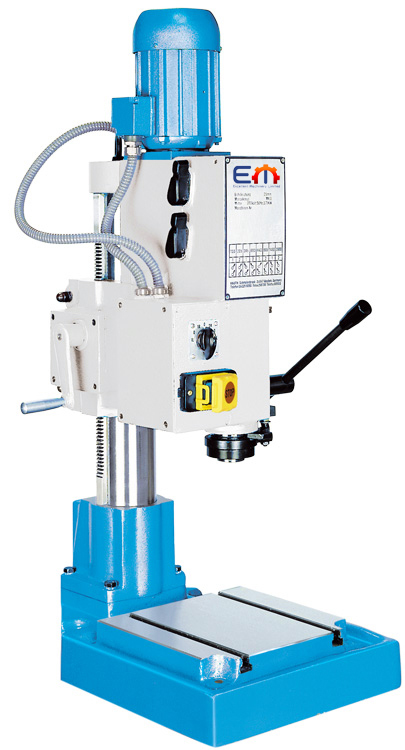

Heavy-duty Gear Drill Press at a Low Price
8 speed steps with positive torque transmission – no belt slippage
easy rpm adjustment via two shift levers and 2-step main motor
heavy construction with thick-walled column
hand wheel for vertical feed of head with solid dual-clamp
depth scale with adjustable depth stop
| KGB 25-Gear-drive drill press | |
| drilling capacity | 25 mm |
| tapping capacity, steel | M 16 |
| working area | |
| table set up area | 275×315 mm |
| spindle axis-to-table surface distance | 110 – 405 mm |
| throat | 225 mm |
| vertical head travel | 300 mm |
| headstock | |
| speed range | (8) 100 – 2900 rpm |
| spindle taper | MK 3 / MT 3 |
| quill stroke | 140 mm |
| drive capacity | |
| motor rating main drive | 0,75 kW |
| main drive, continuous load | 0,55 kW |
| supply voltage | as required |
| measures and weights | |
| overall dimensions | 390x552x1240 mm |
| weight | 200 kg |
,
,
