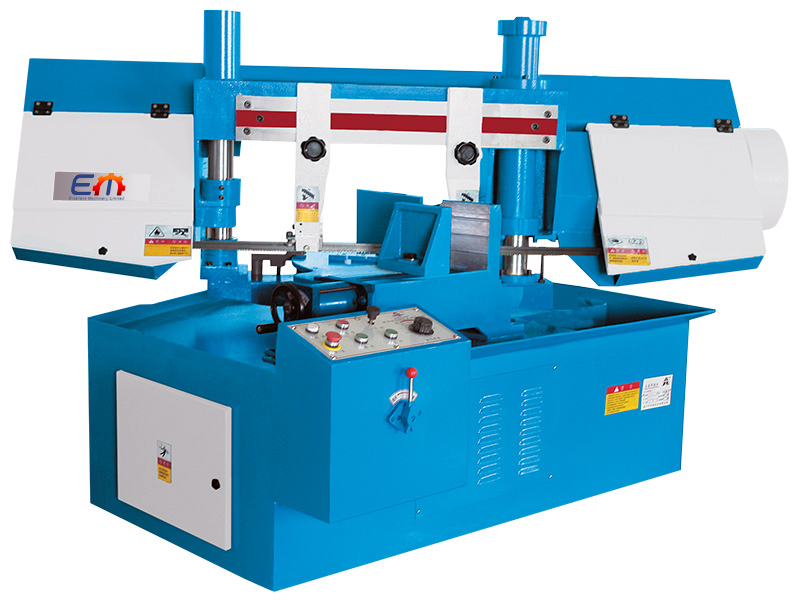

Semi-Automatic Horizontal Miter Band Saw

Semi-Automatic Horizontal Miter Band Saw

Semi-Automatic Horizontal Miter Band Saw

Reliable Dual-Guided Band Saws
 for 90° – 30° angular cuts


extremely rigid dual-column cast-iron construction with heavy swivel console
2 cutting speeds – directly shifted via main drive motor
infinitely variable saw frame feed
horizontal saw frame swivels up to 30°
at the end of each sawing cycle, the saw blade frame will automatically return to the home position
extra rigid, adjustable saw blade guide
including hydraulic workpiece clamping with clamping pressure control

Semi-Automatic Horizontal Miter Band SawHBG 280HBG 350
cutting capacities
cutting capacity 90° (flat)320×280 mm380×350 mm
cutting capacity 90° (round)280 mm350 mm
cutting capacity 90° (square)280 mm350 mm
cutting capacity 45° (flat)200×280 mm245×350 mm
cutting capacity 45° (round)200 mm245 mm
cutting capacity 45° (square)200 mm245 mm
cutting capacity 30° (flat)240×280 mm300×350 mm
cutting capacity 30° (round)240 mm300 mm
cutting capacity 30° (square)240 mm300 mm
cutting speed36, 56 m/min45, 69 m/min
drive capacity
motor rating main drive2,2 kW2,8 kW
main drive, continuous load1,5 kW2,2 kW
motor rating hydraulic pump0,55 kW0,55 kW
motor rating coolant pump0,04 kW0,04 kW
measures and weights
belt dimensions3850x27x0,9 mm4515x34x1,1 mm
overall dimensions1900x1400x1500 mm2300x1500x1600 mm
weight700 kg850 kg

,
