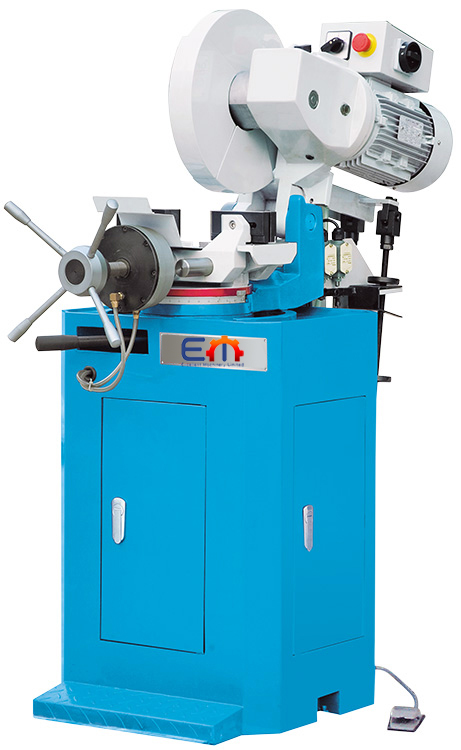

Semi-automatic Circular Saw with pneumatic part clamping
quick-action vise with pneumatic clamping reduces setup time
automatic sawing process with infinitely variable feed speed
two saw blade speeds for optimum cutting results in different materials
miter cuts up to 45°
adjustable saw stroke results in shorter cycle times when cutting small diameter parts
gears running in oilbath
includes base and coolant system
| KHK 350 – Metal Circular Saw | |
| cutting capacities | |
| cutting capacity 90° (flat) | 100×90 mm |
| cutting capacity 90° (square) | 90 mm |
| cutting capacity 90° (round) | 95 mm |
| cutting capacity 45° (flat) | 75×80 mm |
| cutting capacity 45° (square) | 75 mm |
| cutting capacity 45° (round) | 90 mm |
| working area | |
| max. saw blade diameter | 350 mm |
| spindle speeds | 38, 19 rpm |
| width of vise | 145 mm |
| Druckluftversorgung | 6 bar |
| air consumption | 120 l/min |
| drive capacity | |
| motor rating main drive | 1,5 kW |
| supply voltage | 400 V |
| measures and weights | |
| overall dimensions | 1100x640x1680 mm |
| weight | 310 kg |
,
