Feature:
Cutter head with variable angle, plus large travel distances ensure maximum versatility
rigid and safety-oriented structure of all operation groups, manufactured with maximum precision
head swivels ± 45°
fully enclosed design of all drive and power transmission elements prevents contamination and ensures trouble-free operation
Application Examples:
inside diameter boring and facing
milling with milling arbor
slot cutting with divider
angle boring
tapping
The machine head height is adjusted by dovetail guide and lift motor with spindle to provide precise travel. This results in a significantly improved stability during milling operation compared to column-guided systems.
The integrated tapping feature automatically changes directions upon reaching the preset depth.

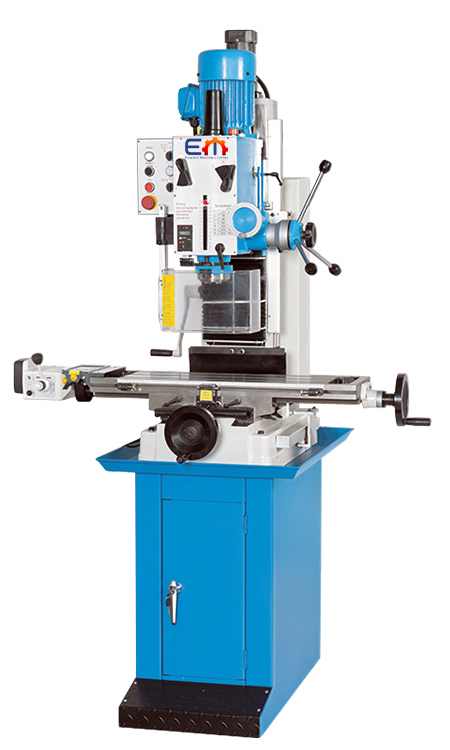

| Mark Super TV1000 – Drill Press / Milling Machine | |
| working area | |
| travel X-axis | 560 mm |
| travel Y-axis | 200 mm |
| table dimensions | 800×240 mm |
| drilling capacity | 32 mm |
| guide width | 190 mm |
| shaft milling | 28 mm |
| head elevation | 320 mm |
| speed | (12) 75 – 3200 rpm |
| spindle nose-to-table distance (max.) | 530 mm |
| vertical milling head | |
| spindle mount | MK 4 |
| quill stroke | 120 mm |
| quill diameter | 75 mm |
| throat | 260 mm |
| head swivel range | ± 45° |
| drive capacity | |
| motor rating main drive | 1,1 kW |
| supply voltage | 400 V |
| measures and weights | |
| overall dimensions | 990x900x2100 mm |
| weight | 380 kg |
,
